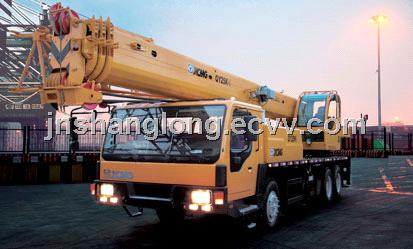

QY25K-II XCMG 25T Truck Crane

FOB Price:	99,999.00 - 119,999.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	within 30 days after receiving the buyer's deposit
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East
Place of Origin:	Jiangsu in China
Packaging Details:	Nude Packing

Specifications

QY25K-II XCMG 25T Truck Crane

Company Instruction:

Jinan Shanglong International Trade Co., Ltd is located in Jinan, Shandong Province, China. With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper, tractor, mixer, cargo truck, special-using truck, semi-trailer and spare parts. What’ s more, MEIYA Pick up truck, SUV truck and Minibus.

XCMG and ZOOMLION series construction machinery such as truck crane, wheel loader, excavator, compactor, road roller, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.

We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

Dimension	Unit	QY25K-II
Overall length	mm	12650
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200 213/2200
Engine rated torque	N. M/(r/min)	1112/1400 1160/1400
Travel
Max. Travel speed	km/h	75
Min. Turning diameter	m	21.5
Min. Ground clearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. Grade ability	%	30
Fuel consumption for 100km	L	≈ 37
Main performance
Max. Rated total lifting capacity	t	25
Min. Rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. Lifting torque	kN. M	1010
Base boom	m	10.7
Fully extended boom	m	34.19
Fully extended boom+jib	m	42.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. Swing speed	r/min	≥ 2.5
Max. Speed of main winch (single rope)	m/min	≥ 120
Max. Speed of aux. Winch (single rope)	m/min	≥ 120

Looking forward to your inquiry! If there is any question, please contact me at any time!
