Guohua Construction Loader Machinery Co., Ltd.
China Manufacturer with main products: Wheel Loader, Mini Loader, Front End Loaders, Small Loader, construction laoder, compact loader, forklift |

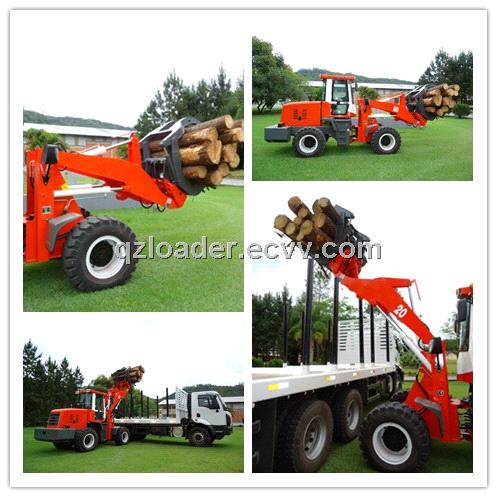

2T wheel loader with log grapple
| Supply Ability: | 150 Set/Sets per Month |
|---|---|
| Shipping: | nude |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Specifications
|
Performance
|
1 .Rated Load
|
2000 kg
|
|
2. Total Weight
|
6800 kg
|
|
|
3. Rated Bucket Capacity
|
1.0 -1.7 m3
|
|
|
4. Max. Tractive Force
|
50.8 KN
|
|
|
5. Max. Breakout Force
|
≥ 60.8 KN
|
|
|
6. Max. Gradeability
|
38°
|
|
|
7. Max. Dumping Height
|
3300 mm
|
|
|
8. Max. Dumping Reach
|
1300 mm
|
|
|
9. Raising Time
|
≤ 6.0 s
|
|
|
10. Total Cycle Time
|
≤ 11.5 s
|
|
|
11. Overall Dimensions (L x W x H)
|
5400*1950*2850 mm
|
|
|
12. Min. Turning Radius
|
3300 mm
|
|
|
Engine
|
13. Model
|
WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B2-24 /YUCHAI 4105
|
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
|
|
|
15. Rated Power
|
60 kW/60 kW/62 kW
|
|
|
16. Rated Speed
|
2400 rpm
|
|
|
17. Min. Fuel Consumption Ratio
|
≤ 251.6 g/kW·h
|
|
|
Transmission System
|
18. Hydraulic Torque Converter
|
ZL280 Integrated Hydraulic Torque Converter
|
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
|
20. Max. Speed
|
25 km/h
|
|
|
Drive Axle
|
21. Model of Axle
|
ZL20 Hub Reduction Axle (big)
|
|
22. Wheel Tread
|
1600 mm
|
|
|
23. Wheel Base
|
2440 mm
|
|
|
Drive
|
24. Mode
|
4-wheel Drive
|
|
Hydraulic System
|
25. System Working Pressure
|
20 Pa
|
|
26. Fuel Tank Capacity
|
93 L
|
|
|
Brake System
|
27. Service Brake
|
Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
|
28. Parking Brake
|
Hand Lever Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
29. Type Specification
|
16/70-20-16PR
|
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
