Specifications

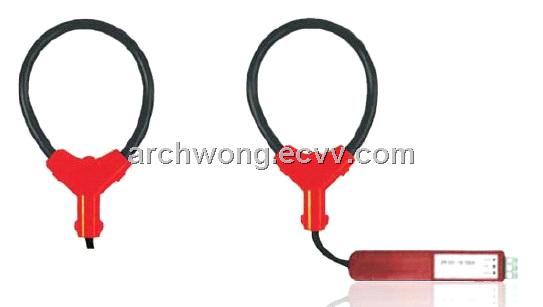

500-2000A Flexible Rogowksi Coil
1. ID:∮55; 80; 105
2. Current Range: 10A-3000A
3. Frequency:10Hz-20Hz
4. Output Voltage:
Rated Current: 500A; 50Hz 50mV AC; 60mV AC
1000A: 50Hz 50mV AC; 60mV AC
2000A 50Hz 50mV AC; 60mV AC
5. Accuracy:<1%
6. Phase Error: <60'
7. Output Sensitivity Tolerance:
±5% Max (No Calibration)
±0.5% @ 25C (With Calibration)
8. Linearity Error:±0.2% (10%-100%)
9.Conductor Position Sensitvity: ±2%
10.External Influence: ±2% Max
11.Insulation Temperature Level: Class E
8. IEC60044-1
8. IEC60044-1
