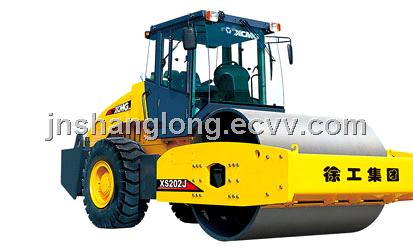

XCMG Mechanical Single Drum Vibratory Compactor XS202J

FOB Price:	4,300.00 - 40,000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	within 30 days after receiving T/T 30% deposit,compactor
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	nude,Compactor

Specifications

Road Building machine XCMG Mechanical single drum vibratory compactor/ Road Roller XS202J

1. Introduction of compactor

Compactor

With the type of hydrodynamic-mechanical drive, the compactor is steered by front axle, and driven by front and rear axles. The output power of the engine passes the transmission and main reducer to drive axle and full hydraulic steering system.

Feature

The XS202J/XS222J/XS222JE is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG’s new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.

Streamline Design

The large arc frame structure and streamline engine hood design make the machine novel and visually attractive in appearance. Just one look, you can be sure the machine is from XCMG.

Excellent Powertrain

The six-cylinder, direct injection, water-cooled, turbocharged Shangchai D6114ZG engine that offers high power reserve, together with the electrically controlled power box and the optional drive axle with NO-SPIN function supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.

Outstanding Compaction

Dual vibration frequencies and dual amplitudes satisfy different jobsite requirements. Imported heavy-duty piston pumps and motors form a closed circuit to provide enhanced durability and reliability, ensuring uniform compaction. Largest diameter drum and highest static linear load of its kind in china coupled with optimized drum structure and vibration parameters work together for outstanding compaction result and great productivity.

Reliable Electrical System

The electrical system adopts internationally sourced water-proof, dust-proof, vibration-resistant electric connectors for increased reliability.

Imported maintenance-free battery has high start-up current and good adaptability.

All-round Safety Consideration

Independently actuated caliper disc type service brakes and band type parking brakes assure safe and reliable braking.

Ant-slip handrail and stairs allow the operator to get on and off the machine freely.

During machine transportation, an articulated locking device can be used to lock the front and rear frame for safe transportation.

High Reliability

Advanced brake and clutch protection system protect the clutch and transmission against damages caused by operation mistakes.

Integrating over forty years’ experience in production, manufacturing and design, XCMG rollers have always been taking the lead in reliability in china’s roller industry.

Comfortable Operation

Electrohydraulic controlled power shift transmission and electrically controlled engine hood make operation easy. The main clutch and braking system are air actuated, offering the ease of operation.

Ergonomically designed instrument panel and simple ergonomic layout of controls minimize fatigue, making the operator highly efficient and productive.

Serviceability

Wide-opening tilt-forward engine hood can be stopped safely at any height using an electric lift device, allowing easy access to the engine for maintenance and service.

Grease fill and drain ports are easily accessible for easier daily maintenance.

2. Main Parameter of compactor

Item	Unit	XS202J
Operating weight	kg	20000
Weight on front drum	kg	10000
Static linear load	N/cm	470
Speed range	km/h
Speed I		2.63
Speed II		5.3
Speed III		8.6
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency (high/low)	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	353/245
Drum diameter	mm	1600
Drum width	mm	2130
Engine model		SC8D175.1G2B1
Rated power @2000 r/min	kW	128
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
