(2.0~2.5 Ton) Pallet Truck

FOB Price:	5,000.00 - 6,000.00 USD/Piece
Supply Ability:	300 Piece/Pieces per Month
Shipping:	30-40 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East
Place of Origin:	Anhui in China
Packaging Details:	nude packing

Specifications

TE specification(2.0~2.5 Ton)

Description:

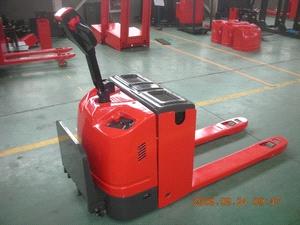

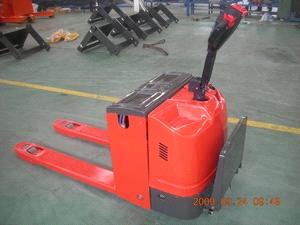

Name: Pallet Truck 2.0T-2.5T
Model: TE20, TE25
The electric pallet truck with load capacity 2T-2.5T, it's polpular in many industries.
1. Safety: Auto Curve Speed-reduced function;
2. Anti-roll back prevents uncontrolled traveled speed or roll-bak on ramps when loading and unloading;
3. The small ground clearance, to protect the operator;
4. High-strength frame design, suitable for tough workplaces, ensures longer service life;
5. Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor;
6. Ergonomics operation handle to increase the comfortable feeling;
7. Excellent performance of getting in and out of empty pallet,greatly increases the operation efficiency;
8. Advanced regenerative braking guarantee low-energy consumtion, increasing the effciency;
9. Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and the truck stops.

Model	TE25
Load capacity Kg	2500
Load center mm	500
Max. lifting height mm	200
Operation type	Standing
Wheel type	Polyurethane solid tire
Pedal length mm	500
Fork size (LxW) mm	1150*175
Width of forks (aptotic) mm	685
Overall length (The pedal is closed) mm	1907
Overall width mm	730
Overall height mm	1400
Outside turning radius mm	1646
Front wheel to fork tip mm	165
Brake	Electromagnetic
Lift speed,laden/unladen mm/s	26/34
Lowering speed, laden/unladen mm/s	34
Battery weight Kg	180
Max. walking speeds Km/h	4.0/5.8
Grade abitity %	6/10
Total weight (with battery) Kg	~600
Driving wheel mm	Φ215*75
Front wheel mm	Φ80*70
Balance wheel mm	Φ100*40
Battery V/Ah	24/210
Charger V/A	24/30
Driving motor Kw	1.5 ac
Lifting motor Kw	1.2
Battery dimensions l/w/h mm	650200585
