Zhangjiagang Mars Packing Machinery Co., Ltd.
China Manufacturer with main products: Filling Machine, Beverage Processing Machinery, Bottle Filling Line, Water Treatment Eqipment, Juice/Tea Filling Machine |
Industrial Continuous Inkjet Printer
| FOB Price: | 3,400.00 - 3,500.00 USD/Piece |
|---|---|
| Supply Ability: | 170 Piece/Pieces per Year |
| Shipping: | 6 Days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wooden case |
Specifications

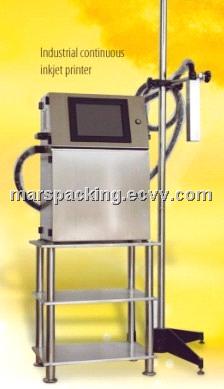

Industrial Continuous Inkjet Printer:
Continuous Inkjet Printer FEATURE
- Quick-dry balck ink used industrial non-contact small character inkjet printers
- Print consistently high quality images even on structured uneven surfaces
- Print features include text, date, time, batch numbers, logo trademark
- Easy to be integrated at any position of the production line
- User friendly interface most reliable ink system
- 32 bit embeded CPU, large memy, the 8.4'' TFT bright clear touch screen
- Configure RS232 USB communication interface, can upgrade the software.
- Multitask system, printing editting at the same time
- Quick-dry balck ink used industrial non-contact small character inkjet printers
- Print consistently high quality images even on structured uneven surfaces
- Print features include text, date, time, batch numbers, logo trademark
- Easy to be integrated at any position of the production line
- User friendly interface most reliable ink system
- 32 bit embeded CPU, large memy, the 8.4'' TFT bright clear touch screen
- Configure RS232 USB communication interface, can upgrade the software.
- Multitask system, printing editting at the same time
APPLICATIONS
Automobile part, Foods, Beverages, Cosmetics, Electronic Component, Pharmaceutical, Stone, Wooden, products, Eggs, Pipes Tubes, Cables Wires etc.
Automobile part, Foods, Beverages, Cosmetics, Electronic Component, Pharmaceutical, Stone, Wooden, products, Eggs, Pipes Tubes, Cables Wires etc.
HYDRAULIC SYSTEM
Full automatic viscosity control pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump
Electronic control system completely separated design from hydraulic system
Full automatic viscosity control pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump
Electronic control system completely separated design from hydraulic system
PRINT HEAD
- Compatible design, maintenance friendly
- Automatic ink stream on when start up ink stream suck back when turn off
- Nozzle size: 58 μ M stard, 52 to 65 μ M optional
- Easily accessible can be installed in any position
- Distance from print head to print surface 1mm~30mm
- Compatible design, maintenance friendly
- Automatic ink stream on when start up ink stream suck back when turn off
- Nozzle size: 58 μ M stard, 52 to 65 μ M optional
- Easily accessible can be installed in any position
- Distance from print head to print surface 1mm~30mm
TECHNICAL SPECIFICATION
Print Lines 1-5 lines (5 x 5 dots)
DOT Matrix figure letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,
24 x 24, user-defined in 32 x 32
Memy 1000 message, 1000 graphics
Print Speed 800 characters per second (5 x 7 dots)
Letter Height 1-20mm
Operating Interface Chinese, English
Print Objects English chracter, Arabic number, date, time, batch numbers, logo, trademark, text
Print Lines 1-5 lines (5 x 5 dots)
DOT Matrix figure letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,
24 x 24, user-defined in 32 x 32
Memy 1000 message, 1000 graphics
Print Speed 800 characters per second (5 x 7 dots)
Letter Height 1-20mm
Operating Interface Chinese, English
Print Objects English chracter, Arabic number, date, time, batch numbers, logo, trademark, text
Material metal, plastic, glass, woode, tubing, electrical wire, cable etc
Font Width up to 9 times
Nozzle Connection Tube 3M
Ink Col black, blue, red etc.
Consumption of Ink 70 millions character per litre
Operating Environment 5-45 degree centigrade, below 90%(huity)
Power Source AC220V / 380V 50Hz 100AV
Font Width up to 9 times
Nozzle Connection Tube 3M
Ink Col black, blue, red etc.
Consumption of Ink 70 millions character per litre
Operating Environment 5-45 degree centigrade, below 90%(huity)
Power Source AC220V / 380V 50Hz 100AV
