300kg Load Capacity Disable Wheel Chair Lift
| FOB Price: | 1,500.00 - 3,500.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | 10 working days after your deposit, shipped to Qingdao port |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Plywood case |
Specifications

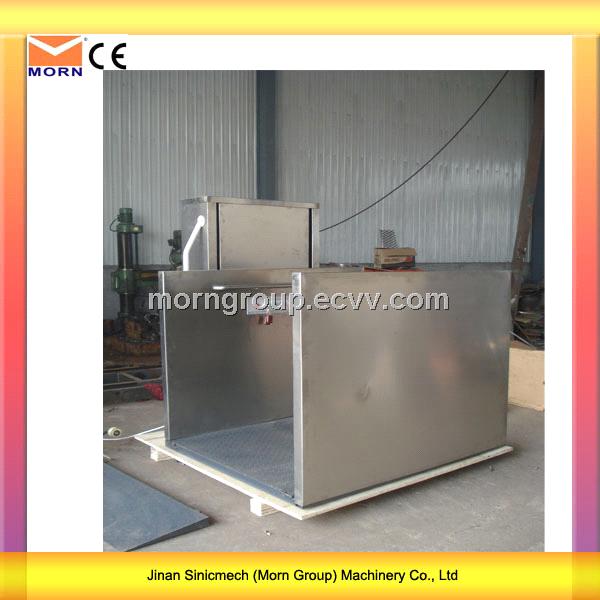

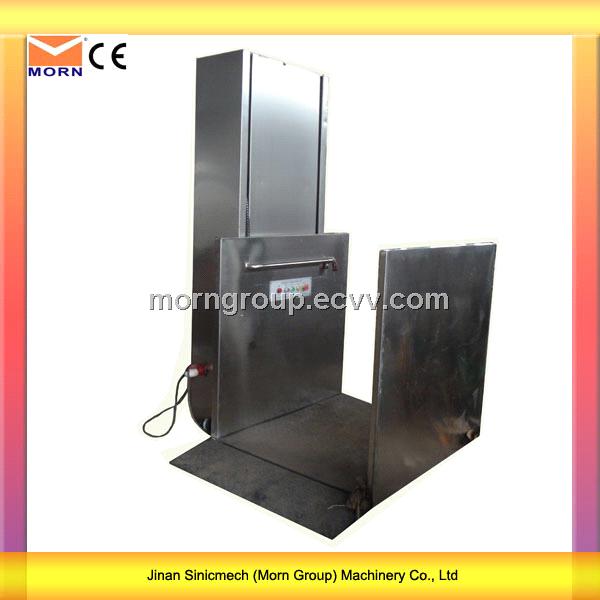

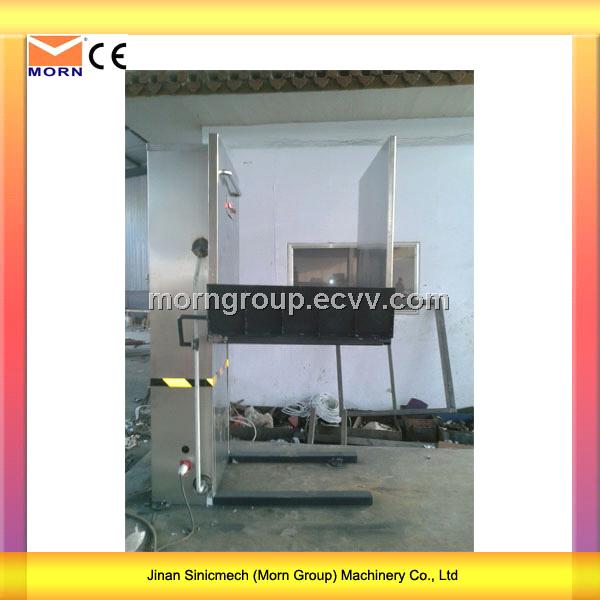

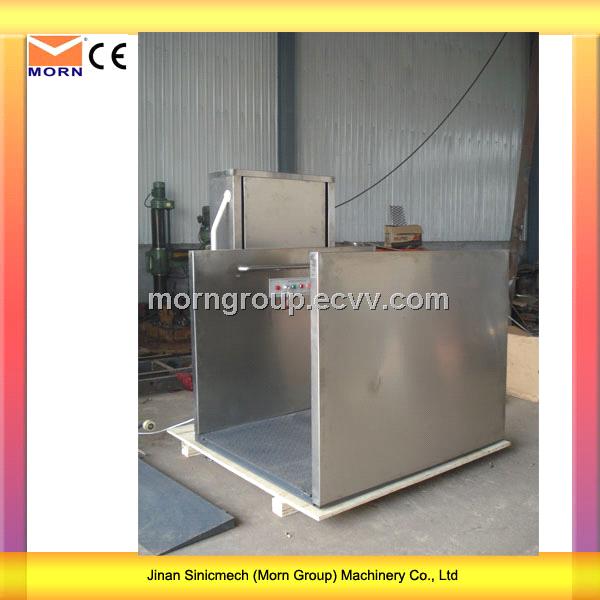

300kg load capacity disable wheel chair lift
1. Lift Chair Load capacity:300kg
2. Lifting height:5m
3. Platform size: 1220*1100mm
4. CE
Jinan Sinicmech (Morn Group) Machinery Co., Ltd is one of branch of the Morn Group Limited.

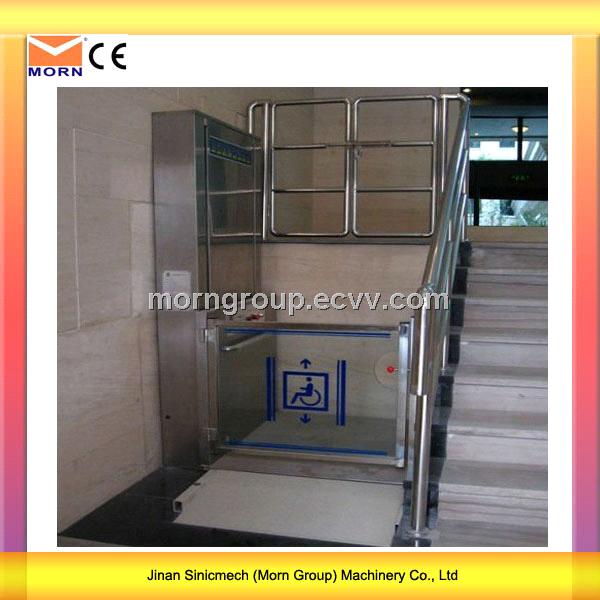

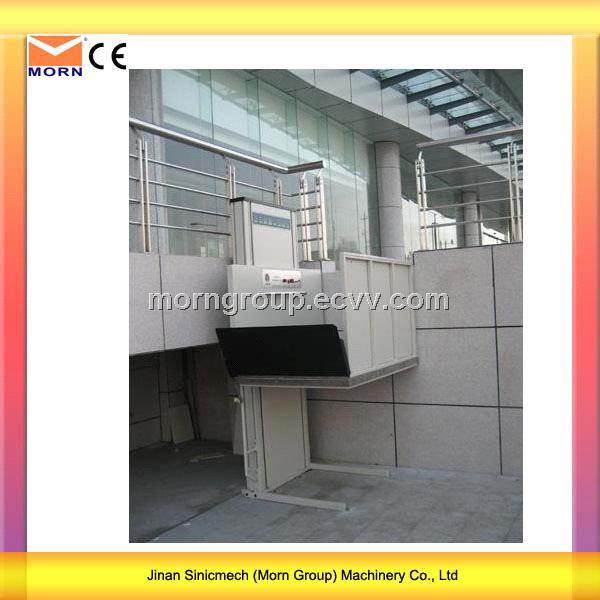

1.Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
1. Lift Chair Load capacity:300kg
2. Lifting height:5m
3. Platform size: 1220*1100mm
4. CE
Jinan Sinicmech (Morn Group) Machinery Co., Ltd is one of branch of the Morn Group Limited.
1.Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.It can be directly installed into the ground without architectural supporting pits and easy to operate.
3.Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending:When there is no power or malfunctions, manually descend the device
5.It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
|
Platform size
|
1220mm(L)* 1100mm(W)
|
|
|
Dimension
|
1220mm(L)*1100mm(W)* Travel height +700~1100 mm(H)
|
|
|
Max Platform Height
|
6000mm
|
|
|
Min Platform height
|
80mm
|
|
|
Configuration
|
Open through or front and side entrances
|
|
|
Speed
|
60mm/s
|
|
|
Load capacity
|
250KG~350KG
|
|
|
Control voltage
|
24V/DC
|
|
|
Power Output
|
1.1KW
|
|
|
Power Input
|
220V/50HZ/25A (or customized for local power supply)
|
|
|
Drive System
|
Hydraulic
|
|
|
Control Mode
|
Inching Switch or Automatic
|
|
|
Drive Control
|
Self-resetting system
|
|
|
Overload
|
Protection Over current relay
|
|
|
Material of Platform
|
Checkered slip-proof aluminum alloy
|
|
|
Painting
|
Plastic electrostatic spraying
|
|
|
Guard panel & drive cabinet (framework)
|
Aluminum Alloy / 304 stainless steel
|
|
|
Operation Panel
|
Polished aluminum Alloy
|
|
|
Safety Wane Working Range
|
75°
|
|
|
Working Condition
|
Both indoors and outdoors
|
|
|
Working temperature
|
From -10°~60°C
|
|
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)
|
|
|
Control Device
|
Calling box (installed on the wall nearby) and remote
controller(Extra optional)
|
|
|
Emergency Stop
|
The lifting and lowering process can be stopped immediately
by pressing the emergency button.
|
|
|
Safety device
|
Safety Interlock
|
Lock the platform when it is out of control
|
|
Safety Sensor
|
The operation must be stopped immediately the safety edge meets obstacles during operation.
|
|
|
Emergency lowering
|
The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
|
|
|
Auto-flap
|
Turn up after lifting
|
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
