Specifications
3.0 Megapixel 2048*1536@20 fps
H.264 video compression, Baseline/MP/HP three coding level.
Support WDR, Maximum range up to 100dB
Support WEB browser, remote config/update, replay, record
Support two-way audio
Support RS232 and RS485
Support snapshot, record, replay
Support Mobile surveillance(optional)
Support Onvif, POE(optional)
Support TF card, NAS server storage (ISCSI optional).
Single stream: 2048*1536@20fps,
Dual stream: main stream (2048*1536@15fps, 1920*1080@30 fps, 1600*1200@30 fps , 1280*720@30 fps)
vice stream ( 704*576@30 fps)
Password protection, flicker prevention, heartbeat, remote upgrade etc.
Technical Parameter
|
Model
|
LC5901A-C11AMOY
|
|

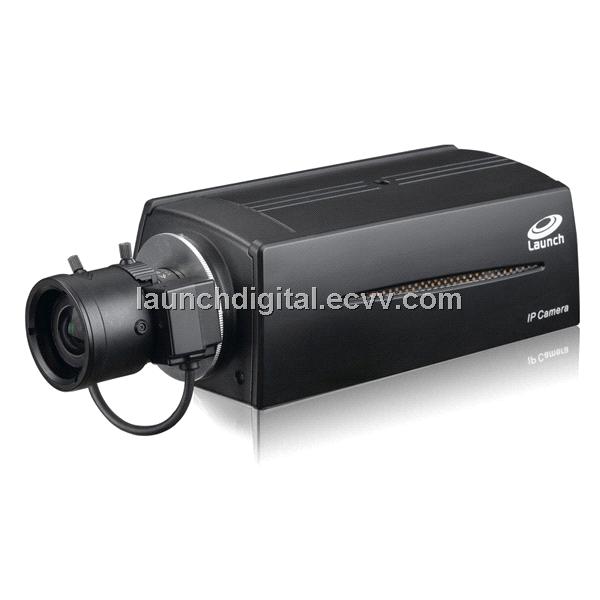

Box IP Camera |
|
|
Image Sensor
|
1/3" Progressive Scan CMOS |
|
Effective Pixels
|
3.0 Megapixel |
|
Lens
|
8mm default, 4/6/8/12/16/25mm optional |
|
Lens Mount
|
C/CS Mount
|
|
Auto Iris Lens
|
DC
|
|
Minimum Illumination
|
Color: 0.6 lux@F1.2,B/W: 0.08lux@F1.2 |
|
Exposal control
|
Auto
|
|
Electronic Shutter Speed
|
1/25s —1/100,000 sec. |
|
Image Setting
|
Brightness, contrast, hue, AGC,AWB, Privacy mask, Motion Detection |
|
Image Flip
|
Yes
|
|
S/N Ratio
|
More than 50 dB
|
|
Analog Video Output
|
1Vp-p Composite Output (75 Ohm, BNC) |
|
Video Compression
|
H.264
|
|
Bit-rate Range
|
32kbps～16Mbps, CBR/VBR variable |
|
Audio Compression
|
G.711/G.722
|
|
Max. Image Resolution
|
2048*1536
|
|
Frame Rate
|
Single stream: 2048*1536@20fps,
Dual stream: main stream (2048*1536@15fps, 1920*1080@30 fps, 1600*1200@30 fps, 1280*720@30 fps)
vice stream ( 704*576@30 fps)
|
|
Function
|
|
|
Remote config/update
|
Support
|
|
Network Protocol
|
PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP, SMTP, FTP, NTP, DDNS, DNS |
|
Security
|
Multi-level user access with password protection |
|
HeartBeat
|
Support
|
|
Dual Stream
|
Support
|
|
Local Storage
|
TF card, NAS server storage (ISCSI optional) |
|
Communication port
|
10/100Mbps, RJ45 Adaptive Ethernet port |
|
1 RS485(PTZ),1 RS232
|
|
|
Audio Interface
|
1 channel 3.5mm audio interface input (BNC, MIC Via DIP Switch) |
|
1 channel 3.5mm audio interface output
|
|
|
Alarm port
|
1 in /1 out ( 4 in/4 out optional)
|
|
Intelligent Alarm
|
Motion Detection, Video Tampering, I/O Alarm |
|
General
|
|
|
Voltage
|
DC12V/1A (POE optional) |
|
Temperature
|
-10℃～60℃
|
|
Humidity
|
≤85%RH
|
|
Consumption
|
<6W
|
|
Net Weight
|
0.7(KG)
|
|
Product Dimension (mm)
|
145(L)*78(W)* 59(H) |
