Wokr Platform Truck

FOB Price:	10,000.00 - 25,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	35 working days after deposit
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Nude packing

Specifications

Name: Boom Crane mounted Truck
Model: VA0.18-18

Jinan Sinicmech (Morn Group) Machinery Co., Ltd is one of branch of the Morn Group Limited.

Specification:

Model	VA0.18-18
Platform:
Load capacity	180kg
Lifting height	18m
Max. Working height	19.7m
Max. Working radius	8.0m
Boom:
Upper boom lifting angle	70°
Lower boom lifting angle	70°
Turn around angle	360°
Outrigger:
Lateral span	2750mm
Adjustment	Individual adjustment
Chassis
Cabin	Single cabin
Crews	3 persons
Steering	Left hand drive
Fuel	Diesel oil

Intro:

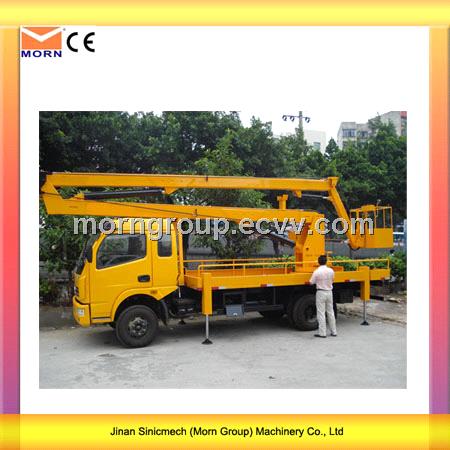

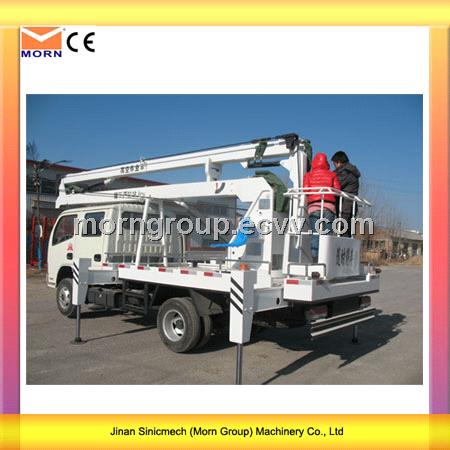

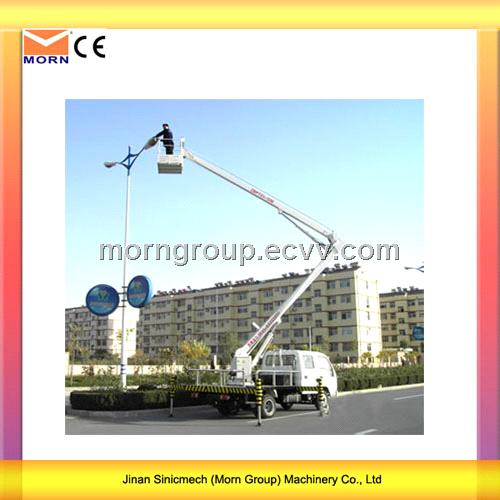

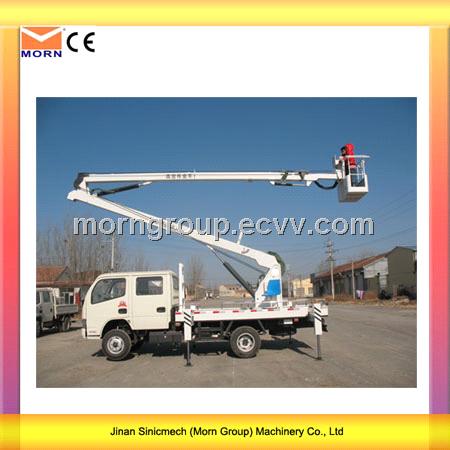

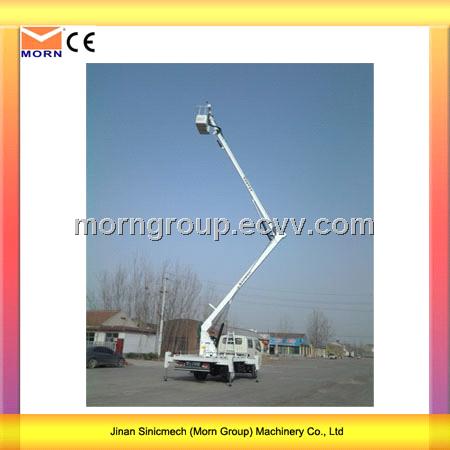

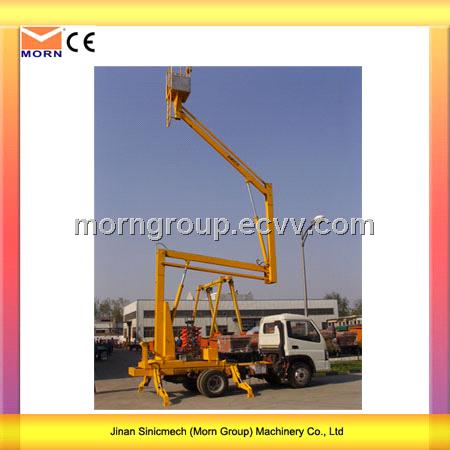

It is called vehicular articulated boom lift, also named vehicle folding arm lift. This type lift could be used in large space, with 360degree working scope in the aerial.

At the ground, one worker control the truck to move forward and backward. In aerial, single operation, adjusting the lifting height. Lifting power and traveling power are all from the truck, with hydraulic system, diesel power.
