Specifications

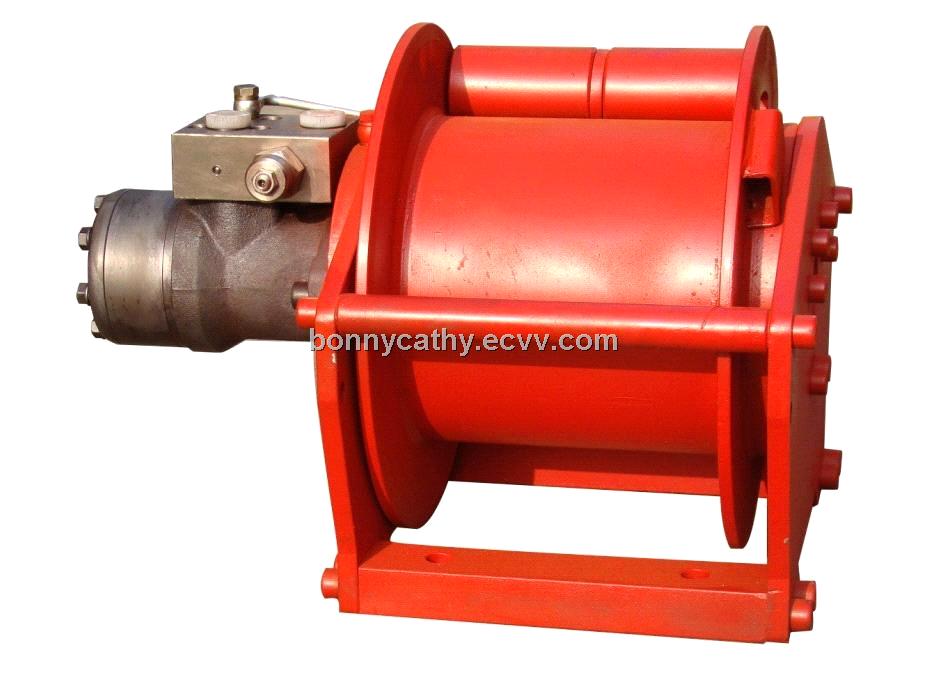

Model: BG series
Pull Force: 500-5700kg
Rope Speed: 0-63m/min
BG series hoisting winches are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.
Special Features
1. Floating type planetary gearbox, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Long life Danfoss hydraulic orbit motor
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
| Model | Pull Force (KN) | Rope Speed (m/min) | Diameter of rope (mm) | Capacity of rope (m) | Working pressures diff. (Mpa) | Flow Rate (L/min) | |
| 1st layer | top layer | ||||||
| BG500 | 500 | 380 | 63 | 6 | 67 | 14 | 40 |
| BG800 | 800 | 680 | 54 | 8 | 53 | 14 | 50 |
| BG1100 | 1100 | 870 | 41 | 8 | 53 | 14 | 50 |
| BG1300 | 1300 | 1000 | 45 | 9 | 48 | 14 | 55 |
| BG1500 | 1500 | 1200 | 42 | 10 | 60 | 21 | 55 |
| BG2000 | 2000 | 1600 | 35 | 10 | 60 | 21 | 55 |
| BG2500 | 2500 | 2000 | 52 | 12 | 52 | 21 | 100 |
| BG2600 | 2600 | 2000 | 54 | 12 | 76 | 21 | 100 |
