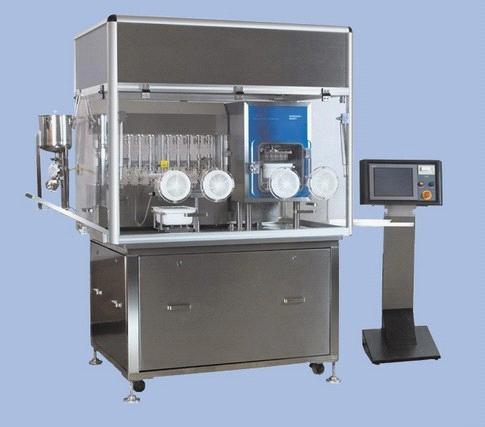

Filling and Plugging Machine for Pre-Sterilized Syringes

Supply Ability:	10 Set/Sets per Month
Shipping:	20 working days
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Specifications

Product Description of Automatic Injector Filling And Capping All In One Machine

Filling and Plugging Machine for Pre-Sterilized Syringes

1, Rotating piston pumps are driven by servo motors. Filling volume is adjustable without any tool
2, High precision moving on Y axle, 10 sync nozzles filling.
3, Vacuum inner plugging, avoid micro particles.
The machine is compatible to the pre-sterilized syringes, B-D Hypac SCF or alike, Custom-made machine is also available for other types of syringes.
10 filling nozzles, German linear rail (Y axle) with high precision and free of maintenance.

●Two sets of servo motors (Japanese YASUKAWA)
●Vacuum plugging, avoid micro particles due to friction if vibrator is used for rubber stoppers. Japanese Vacuum sensor, vacuum is adjustable in stepless way.
●Print-out of process parameters, original data is stored.
All contact parts are of AISI 316L and pharmaceutical silicon rubber.
●12'color touch screen displaying all working status including vacuum pressure, nitrogen pressure, air pressure, multi languages are available.
●AISI 316L or high-precision ceramic rotating piston pumps are driven by servo motors. Only set-up on touch screen for automatic accurate correction. Each piston pump can be minim adjusted.

Filling Volume	0.5ml,1ml,1-3ml,5ml,10ml,20ml
Number of Filling Head	10 sets
Capacity	2,400-6,000 Syringes/Hour
Y Travel Distance	300mm
Printer	Hot-sensible printing paper width 56mm, max.20 alphabets per line
Vacuum	-95Kpa—0 (-720mmHg—0)
Nitrogen	1Kg/cm 2 , 0.1m 3 /min 0.25μ(-720mmHg—0)
Compressed Air	6Kg/cm 2 ,0.15m 3 /min
Power Supply (Including Vacuum Pump)	3P 380V/220V 50-60Hz 3.5KW
Dimension	1400×1000×2200 L×W×H
Net Weight	750kg
