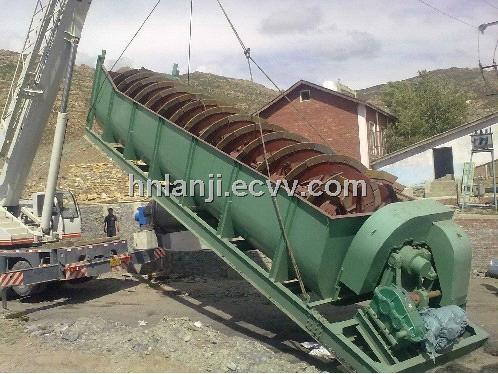

Mineral Spiral Classifier
| FOB Price: | 5,500.00 - 55,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | standard container |
Specifications
The Mineral Spiral Classifier is widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.
Working Principle Of The Mineral Spiral Classifier:
This classifier can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe. The seat of the machine features channel steel material, while the body is armor plated and the spiral axle is made of cast iron for durability. The machine's lifting equipment can be used manually or electronically.
The working principle of the grader is that different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities floating in the water will overflow and the big ones will sink to the bottom and discharge from the upper part by spiral pushing. It can filter the granularities from the machine and then spin the rough particles to charging part by spiral vane and discharge the fine granularities from the overflow pipe. The base of the machine adopts a channel steel and the body adopts welded steel plate. The water inlet of spiral axle and axle head adopt pig iron cover for wear proofing and long life operation. The lifting equipment has two types, manual control and electric control.
Mineral Spiral Classifier Main Technical Specifications:
|
Model
|
Spiral diameter (mm)
|
Trough length (mm)
|
Spiral rotation speed
(r/min) |
Production capacity (t/d)
|
Motor power (kw<=)
|
Machine weight (t)
|
||
|
Back to sand
|
Overfall
|
For driving
|
For lifting
|
|||||
|
FG7.5
|
750
|
5500
|
6-10
|
340-570
|
65
|
3.0
|
Manually
|
2.7
|
|
FG10
|
1000
|
6500
|
5.0-8.0
|
675-1080
|
110
|
5.5
|
Manually
|
4.43
|
|
FG12
|
1200
|
6500
|
5.0-8.0
|
1170-1870
|
155
|
5.5
|
1.5
|
8.7
|
|
FG15
|
1500
|
8400
|
4.0-6.0
|
1830-2740
|
235
|
7.5
|
2.2
|
12.5
|
|
FG20
|
2000
|
8400
|
4.0-6.0
|
3240-5400
|
400
|
11
|
2.8
|
20.5
|
|
FG24
|
2400
|
9210
|
3.6
|
4650-7450
|
580
|
15
|
3.0
|
25.6
|
|
FG30
|
3000
|
1250
|
3.2
|
11625
|
890
|
22
|
4.0
|
37.7
|
|
2FG12
|
1200
|
6500
|
5.0-8.0
|
2340-3740
|
310
|
5.5*2
|
1.5*2
|
14.0
|
|
2FG15
|
1500
|
8400
|
4-6.0
|
3660-5480
|
470
|
7.5*2
|
1.5*2
|
21.1
|
|
2FG20
|
2000
|
8400
|
3.0-5.5
|
7780-11800
|
800
|
11*2
|
2.8*2
|
36.5
|
|
2FG24
|
2400
|
9210
|
3.6
|
13600
|
1160
|
15*2
|
3*2
|
46.8
|
|
2FG30
|
3000
|
12500
|
2.0-3.2
|
14600-23400
|
1785
|
22*2
|
4*2
|
73.0
|
