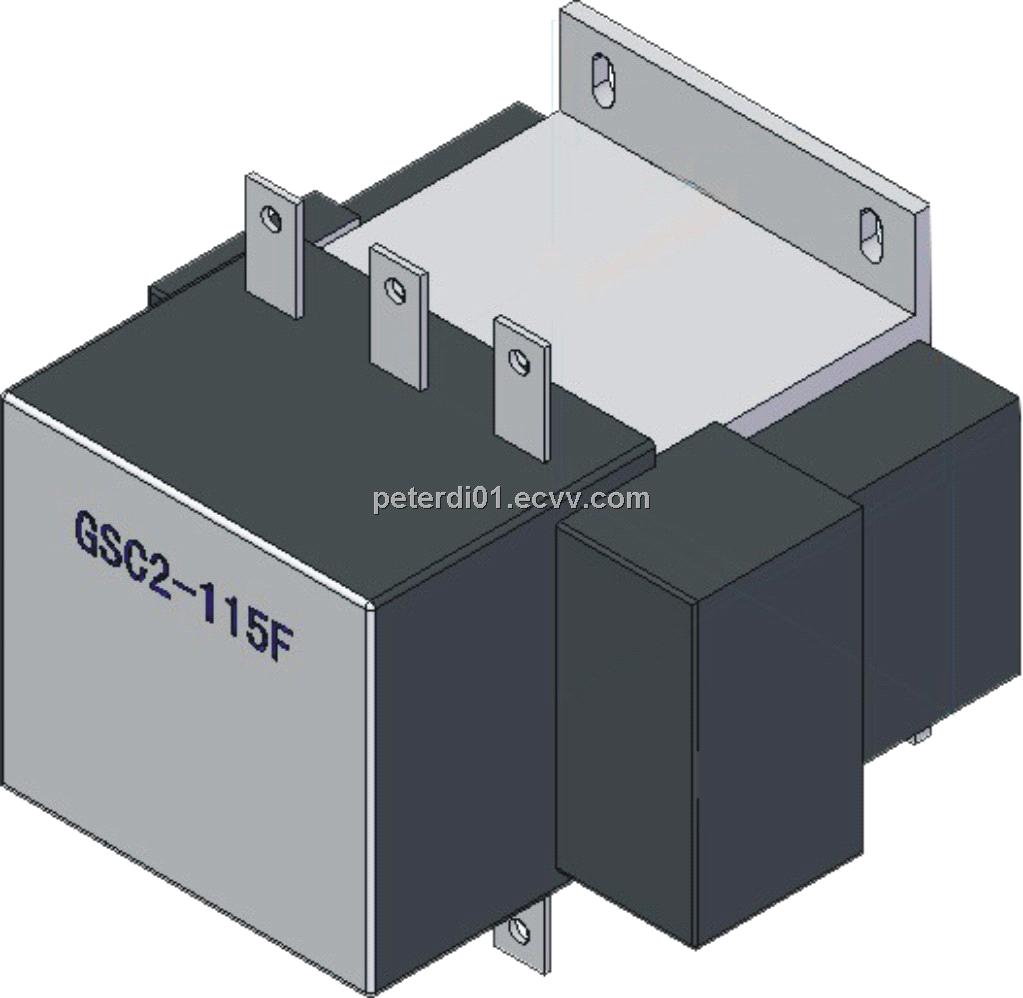

CCC TUV CE Tianshui 213 GSC2-F series AC Contactor
| FOB Price: | 181.50 - 1,245.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Week |
| Shipping: | 7-15 days after order confirmation |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Gansu in China |
| Packaging Details: | standards export carton |
Specifications
1.Application
GSC2-F range AC contactor is used in AC 50Hz (or 60Hz), rated working voltage is up to 660V, and rated current 115-630A under rated voltage 380V and category AC-3, for long-distance making and breaking circuit and frequently trip motor, can be conveniently added auxiliary contact arrangement or air time-delay terminal, and can interoperable with the appropriate thermal overload relay as electromagnetic starter for protecting protecting overload circuit.
2.character
|
TYPE
|
Current agreement fever Ith (A)
|
AC-3 type of use
|
|||
|
Rated current Ie(A)
|
Maximum rated power of control 3-phase case motor pe
|
||||
|
Ue=380V
|
Ue=660V
|
Ue=380V
|
Ue=660V
|
||
|
GSC2-115F
|
200
|
115
|
86
|
55
|
80
|
|
GSC2-150F
|
250
|
150
|
107
|
75
|
100
|
|
GSC2-185F
|
275
|
185
|
118
|
90
|
110
|
|
GSC2-225F
|
315
|
225
|
135
|
110
|
129
|
|
GSC2-265F
|
350
|
265
|
170
|
132
|
160
|
|
GSC2-330F
|
400
|
330
|
225
|
160
|
220
|
|
GSC2-400F
|
500
|
400
|
305
|
200
|
280
|
|
GSC2-500F
|
630
|
500
|
355
|
250
|
335
|
|
GSC2-630F
|
800
|
630
|
460
|
335
|
450
|
|
GSC2-800F
|
1000
|
800
|
1000(AC-1)
|
450
|
475
|
3.Working and installation condition
Ambient temperature: -25°C~+60°C;
Elevation≤3000m;
Relative humidity is not exceeding 85% at the maximum ambient temperature +40°C. Should give consideration to the dews, which would appear due to temperature change;
Should install at no significant shaking or vibration place;
Installation way: by screw; Installation categories: class Ⅲ;
Pollution grade: Grade 3;
Installation gradient: vertical installed, the tilt gradient with vertical face should ≤5° .
4. Production line
Raw materials testing
Plastic shell processing
Coil winding processing
Magnet processing
Spring winding
Metal parts processing
Product assemble
Product testing
