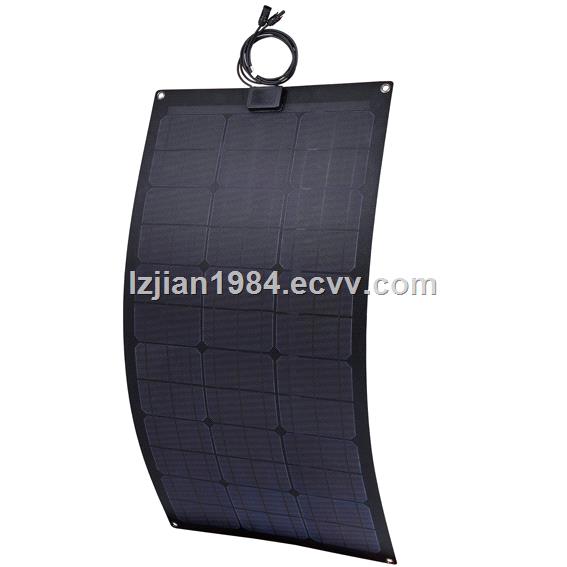

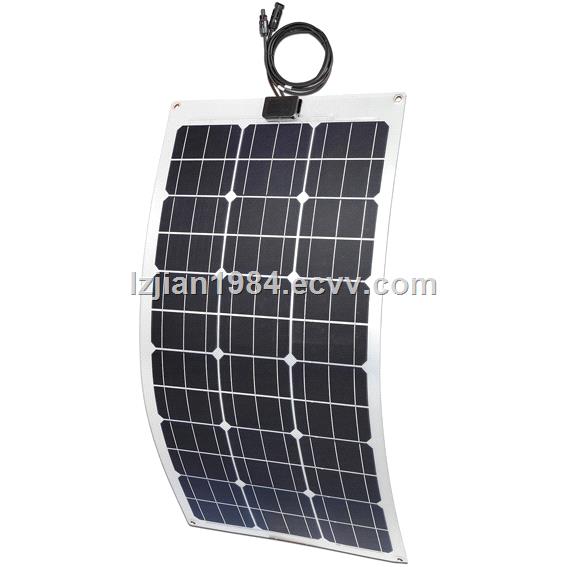

Hot 75W Flex Solar Panel From China Factory Directly,Solar Flex Panel,Mxflex solar panel
| FOB Price: | 93.75 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 999,999 Piece(s) per Month |
| Shipping: | 12 days after received the deposite |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 10 Pieces in one Carton |
Quick Details
- Max. Power: 75 Watt
- Number of Cells: 36 Pcs
- Size: 1070*530*2.5MM
- Material: Monocrystalline Silicon
- Model Number: SNM75F-36
- Brand Name: ARTSUN
- Solar cell type: Mono solar cells
- Laminate: ETFE/EVA/ETFE
- BACK FILM: PCB/ALUMINIUM
Specifications
[Functions and Characteristics]
1).Semi flexible : bending angle up to 20 degree
2).Durable with aluminum backsheet or fiberglass
3).Light weight for easy carry.
4).The thickness is only 2.5mm, which is easy joint to your yacht or RV roof.
5).High efficiency up to 17% of monocrystalline solar cells
6).ETFE, EVA, solar cell , oxidation resistance PCB or aluminium sheet
laminated with more waterproof and anti-age materials .
[Technical Specifications]
Peak Power(Pmax).............................................................75(W)
Production Tolerance..........................................................±3%
Maximum Power Voltage (Vmp).......................................18V
Maximum Power Current (Imp).........................................4.16A
Open Circuit Voltage (Voc)...............................................21.24V
Short Circuit Current (Isc).................................................4.58A
Maximum System Voltage................................................DC 500V
Solar Cell Type....................................................................Mono
Solar Cell Efficiency............................................................17%
Size.......................................................................................1070*530*2.5MM
AII technical data at standard test condition: AM=1.5, E=1000W/㎡ , Tc=25°C
| Name | Value | Unit |
|---|---|---|
| Pmax | 75.0 | Wp |
| Imax | 4.16 | A |
| Uoc | 21.24 | V |
| Isc | 4.58 | A |
| no. of cells | 36 | pcs. |
|
|
|
|
| Laminate | ETFE/EVA/ETFE | |
| Length | 1060.0 | mm |
| Width | 530.0 | mm |
| Thickness | 2.5 | mm |
