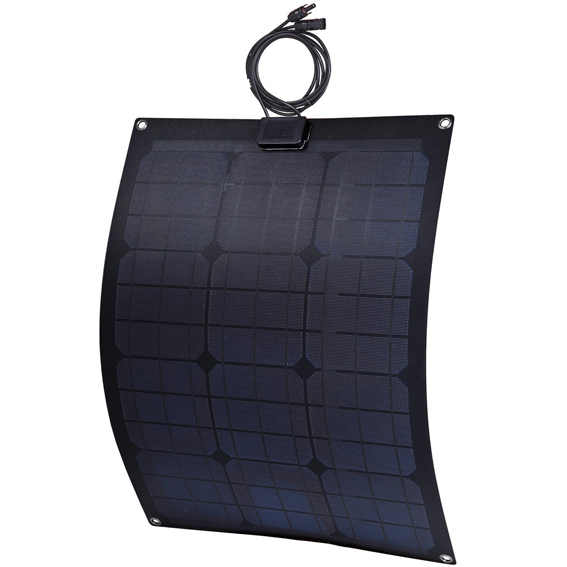

30W Semi-Flexible Solar Panel

FOB Price: 37.50 - 45.00 USD/Piece
Supply Ability: 999,999 Piece/Pieces per Month
Shipping: 12 days after received the deposit
Payment Terms: L/C, T/T, Western Union
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: 10 Pieces in CTN

Quick Details

  • Max. Power: 30 Watt
  • Number of Cells: 36
  • Size: 630*440*2.5MM
  • Material: Monocrystalline Silicon
  • Model Number: ATS30F-36
  • Brand Name: ARTSUN
  • Solar cell type: mono
  • Laminate: ETFE/EVA/ETFE
  • Back Film: PCB/ALUMINIUM

Specifications

  • [Functions and Characteristics]

    1).Semi flexible : bending angle up to 20 degree

    2).Durable with aluminum backsheet or fiberglass

    3).Light weight for easy carry.

    4).The thickness is only 2.5mm, which is easy joint to your yacht or RV roof.

    5).High efficiency up to 17% of monocrystalline solar cells

    6).ETFE, EVA, solar cell , oxidation resistance PCB or aluminium sheet

     laminated with more waterproof and anti-age materials


  • [Technical Specifications]

      Peak Power(Pmax).........................................................30(W)

      Production Tolerance......................................................±3%

      Maximum Power Voltage (Vmp).....................................18V

      Maximum Power Current (Imp).......................................1.66A

      Open Circuit Voltage (Voc)..............................................21.24V

      Short Circuit Current (Isc).................................................1.83A

      Maximum System Voltage................................................DC 500V

      Solar Cell Type...................................................................Mono

      Solar Cell Efficiency...........................................................17%

      Size........................................................................................630*440*2.5MM

     AII technical data at standard test condition: AM=1.5, E=1000W/㎡ , Tc=25°C

  • Name Value Unit
    Pmax 30.0 Wp
    Imax 1.66 A
    Uoc 21.24 V
    Isc 1.83 A
    no. of cells 30 pcs.



    Laminate ETFE/EVA/ETFE
    Length 630 mm
    Width 440 mm
    Thickness 2.5 mm
