Estar Electronic Co.,Ltd.
China Manufacturer with main products: Digital Thermometer, Infrared Ear Thermometer, Thermometer Fork, Digital Tire Pressure, Clinical Thermometer, Huminity |

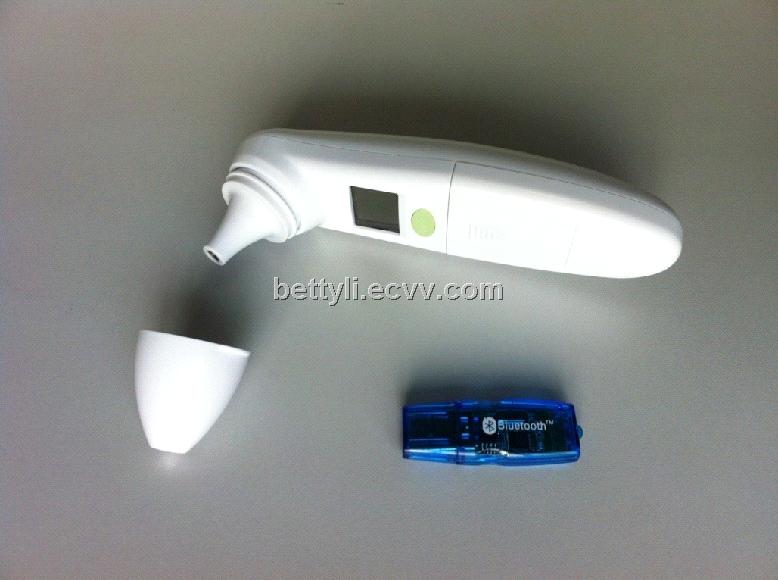

Bluetooth digital infrared ear thermometer
| Supply Ability: | 10,000 Piece/Pieces per Month |
|---|---|
| Payment Terms: | T/T, Western Union |
| Export Markets: | Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Brand Name: ESTAR
- Model Number: EET-1
- Accuracy: +-0.2C
- Temperature Range: 32.0~42.9C
- Certification: CE
- Type: Bluetooth digital infrared ear thermometer
- Measure time: 1 second
Specifications
Infrared ear thermometer
Professional manufacturer
Certificate: ISO13485/ISO9001/ROHS/CE
Good quality and resonable price
Infrared Ear thermometers are developed using the latest infrared technology
to develop.
digital infrared ear thermometer can measure your temperature quickly (1 second) and easily by inserting
the tip into your ear.
to develop.
digital infrared ear thermometer can measure your temperature quickly (1 second) and easily by inserting
the tip into your ear.
Model:EET-1xin '
Specifications:
1) Temperature range: 32oC ~ 42oC
2) Environment temperature range: 12oC ~ 38oC
3) Storage temperature range: -20oC ~ 50oC
4) Measurement time: within 1 second
5) The scale choosing: oC
6) Display mode: LCD
7) Memory function: 10 group
Specifications:
1) Temperature range: 32oC ~ 42oC
2) Environment temperature range: 12oC ~ 38oC
3) Storage temperature range: -20oC ~ 50oC
4) Measurement time: within 1 second
5) The scale choosing: oC
6) Display mode: LCD
7) Memory function: 10 group
Bluetooth function:
The computer can get the readout by bluetooth.
Record the temperatures by bluetooth when detect the kindergarten or infants' school children.
It's convenient.
Inner packing:
Color box dimensions: 16.5 x 9 x 5cm
G.W.: 129g
Outer packing:
50pcs/ctn
Dimensions: 46.5 x 26 x 35cm
N.W.: 6.5kg
G.W.: 7.5kg
OEM service:
customer can change the package of the thermometer
Principle:
An infrared (IR) thermometer contains an optical sensor, usually a thermopile, which can detect the infrared emissions from any hot object. The magnitude and spectrum of infrared energy emitted depends on:
a.) internal temperature of the body
b.) temperature of the thermometer, which is also radiating IR energy
c.) emissivity, which describes the efficiency of the surface for radiating electromagnetic radiation and is a dimensionless number between 0 (smooth shiny surface) and 1 (dark rough surface)
d.) filtering effect of optical components, including the probe cover.
Infrared ear thermometers are designed to sense the temperature of the tympanic membrane within the ear. The measured temperature is an average across the visualised area. The field of view may encompass adjacent ear structures, approximately 2 Calsius cooler than the tympanic menbrane (typically 37.3 Calsius). An instrumentation offset is usually applied which incorporates information about the thermometer's temperature and filtering effect of the optical components. Some devices also try to correct for the effect of averaging( making assumptions about the relative size of the tympanic membrane in the field of view.)
Forehead thermometers repeatedly sample the skin temperature seeking peak values, caused by the presence of the temporal artery lying under the surface. Inftrumentation offset values and physiological offset values are then applied to predict the temperature at another site, usually oral. All these devices use computational software to rapidly predict the temperature but the algorithms will vary between different types as they are based on their own clinical trials.
Our advice on clinical use
The key issues covered in the user instructions for infrared eat thermometers are:
1.) Check the ear canal is clean, dry and normal in apparence and is not obstructed or containing vernix, inflammation, blood or excessive earwax. Bote the general angle of the ear canal.
2.) Ensuring the thermometer lens is clean.
3.) Straighten the ear canal, giving a clear view of the eardum and position the thermometer head so the sensor will be directed at the tympanic menbrance and not cooler eat structures. For children <1 year the ear lobe should be pulled straight back. For older patients pull the ear lobe up and back. Incorrect placing can give falsely low temperature readings.
4.) Failing to seal the ear canal opening may result in a lower reading.
5.) Do not use excessive force to insert the probe into the ear as this may injure the ear canal or ear drum.
6.) The patient should not exercise or talk during temperature taking.
7.) Do not take a patient reading within 30 minutes of a bath/shower or swimming.
8.) Always wait two minutes before repeating a measurement in the same ear.
9.)Always compare measurements from the same ear.
10.)Using the maximum of three repeated measurements is recommended for infants less than 100days old, children under three years with compromised immune sustem and when the user is learning to use the thermometer.
