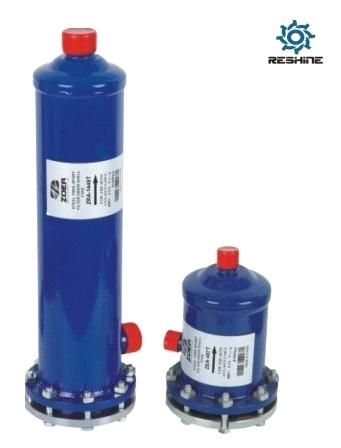

Liquid and Suction Core Shell Filter Drier Shell
| Supply Ability: | 10,000 Piece/Pieces per Month |
|---|---|
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Export neutral standard packing/According to client requirement. |
Specifications
ZRA Take-part filter drier with exchangeable soild core uses the flange connection to seal, that is very convenient to adjust and maintain the equipment.
It is especially suitable for the system damaged after compressor motor burnt down and filled plenty of water.
It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid and suction line of refrigerating and air conditioning plants that uses fluoride refrigerants.
Features:
1. Sturdy steel shells prolong service life;
2. Low pressure loss when full flowing;
3. Surface corrosion resistant static electrical painting process protecting the shell from the rust;
4. Could be matched well with all brands of molded, pleated and suction line filter cores of 48 series;
5. Simple internal parts making easy installation, and all parts are steel galvanized.
Design Functions:
1. Bolt of level 8.8;
2. Flange plate(45#);
3. Flange ring(20#);
4. Spring(65Mn);
5. Core bracket(20#);
6. Steel filter shell(Q235);
7. End cap(ST12);
8. ODF Connection(TP2Y2)Other products from this supplier
