Shanghai KRD M&E Equipment Co., Ltd.
China Manufacturer with main products: Tube Conveyor System, Pneumatic Conveyor System, Bulk Handling Valves, Contianer Discharger System, Screw Conveyor |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden boxes |
Specifications

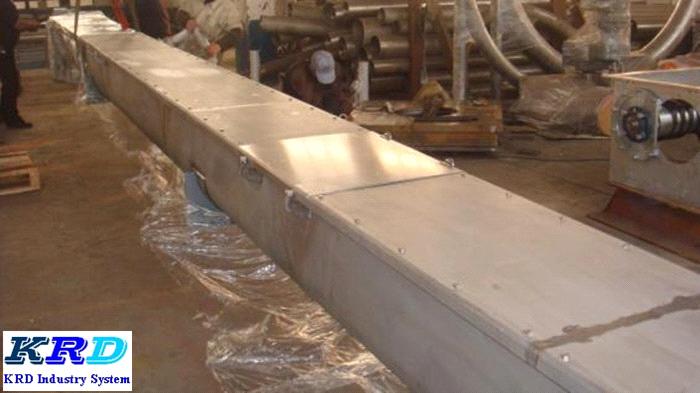

Features of screw conveyor:
Simple structure, small sectional area, good seal, reliability, low costs,.
Conveying directions can be changed in the conveyor.
Can blend, cool and heat product while conveying.
Use an additional valve to control the flow.
Disadvantages: not suitable for sticky, lumpy and perishable product.
product destruction.
Parameters:
1: Power Supply: 3 Phase 208-415V 50-60Hz
2: Charging angle: Standard 45 degree, 30~60 degree are also available.
3: Lifting Height: Standard 1.85 meters,1 – 5 M could be designed and manufactured
4:Food grade screw, Mixer and power box are optional.
Models:
straight and flexible
Straight screw is used for short distance.
Flexible screw can be freely arranged to meet conveying requirements.
Specifications
1: With vibrating and feeding motor.
2: Lifting height can be custom-made.
3: Many charging capacity available.
2: Lifting height can be custom-made.
3: Many charging capacity available.
|
Model
|
GS-4S2
|
GS-4S3
|
GS-4S5
|
GS-4S7
|
GS-4S8
|
GS-4S12
|
|
Charging Capacity
|
2m3/h
|
3m3/h
|
5 m3/h
|
7 m3/h
|
8 m3/h
|
12 m3/h
|
|
Diameter of pipe
|
φ102
|
φ114
|
φ141
|
φ159
|
Φ168
|
Φ219
|
|
Total power
|
0.61KW
|
0.81W
|
1.56KW
|
2.26KW
|
3.06KW
|
4.06KW
|
|
Total Weight
|
100kg
|
130kg
|
170kg
|
200kg
|
220kg
|
270kg
|
|
Hopper Volume
|
100L
|
200L
|
200L
|
200L
|
200L
|
