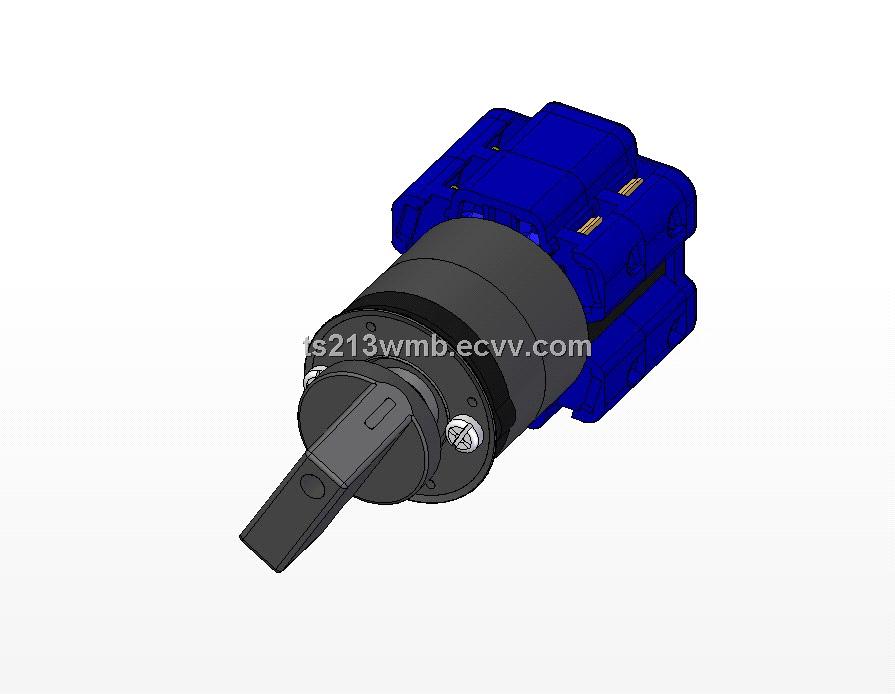

GSH3-20/32 Series of Finger-Protected Type Fast Change-Over Switch

FOB Price:	27.00 - 42.00 USD/Piece
Supply Ability:	50,000 Piece/Pieces per Week
Shipping:	7-15 days after order confirmation
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Gansu in China
Packaging Details:	standards export carton

Specifications

1.Application of GSH3-20/32 Finger-Protected Type Fast Change-Over Switch:

GSH3-20/32 series of finger-protected type fast change-over switch, mainly used in AC-21A use category, AC 50 HZ, rated operational voltage 230V/400V, rated operational current to 32 A circuit, and can be used for circuit control switch, test equipment switch, motor control switch and master control switch,and with electric welder use change-over switch and so on, especially in UPS uninterrupted power supply system, mainly used in changing-over as standard power test switch. AC-3 use category, rated operational voltage is 400V, rated operational current to 22A circuit, direct-on starting, in operation breaking three-phase asynchronous motor.

Products meet the standards GB14048.5, GB14048.5, and IEC/EN60947-3, IEC60947-5-1.

Note: this product can not be used as dual power selector switch .

2.Product features

Notmal open and normal close contact changeover time less than 6 ms.

Use fast switching mechanism.

Action mechanism is directly operated type, contact is double breakpoint.

The way of installation is mounting screw after the board.

Protection grade IP20(finger-protected).

Made of environment friendly material.

IMC/EN60947-3 GB14048.3.Meet a criterion IEC/EN60947-3 GB14048.3

3.Main technical parameters

Type specification	Using type	Nominal insulation voltage Ui(V)	Rated operational voltage Ue(V)	Rated operational current Ie(A)	Rated control power (KM)
GSH3-20	AC-21A	690	230,400	20	/
GSH3-20	AC-3	690	400	10	5.5
GSH3-32	AC-21A	690	230,400	32	/
GSH3-32	AC-3	690	400	22	11
Operational frequency
