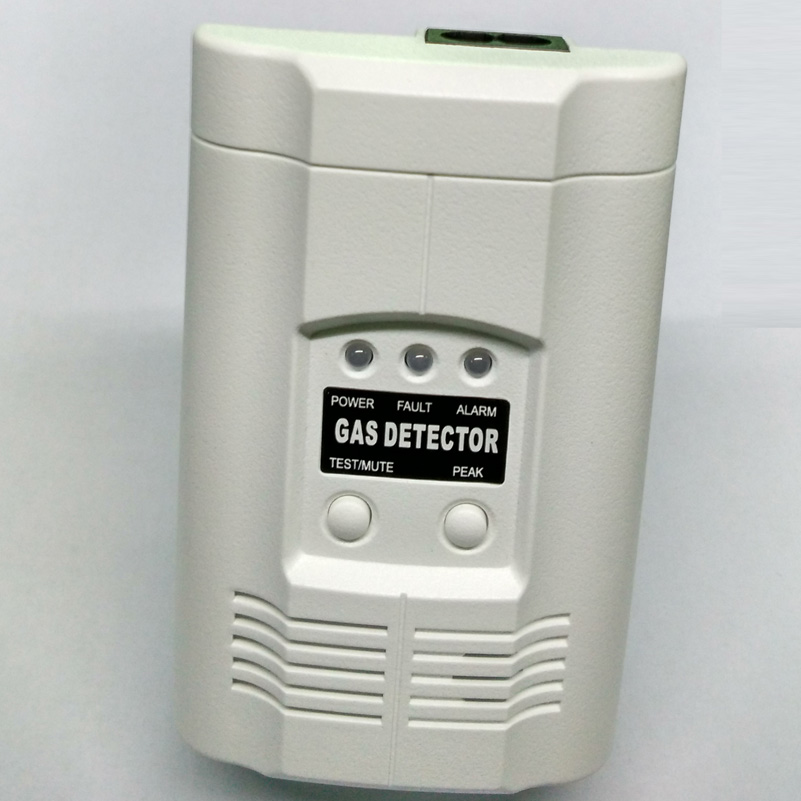

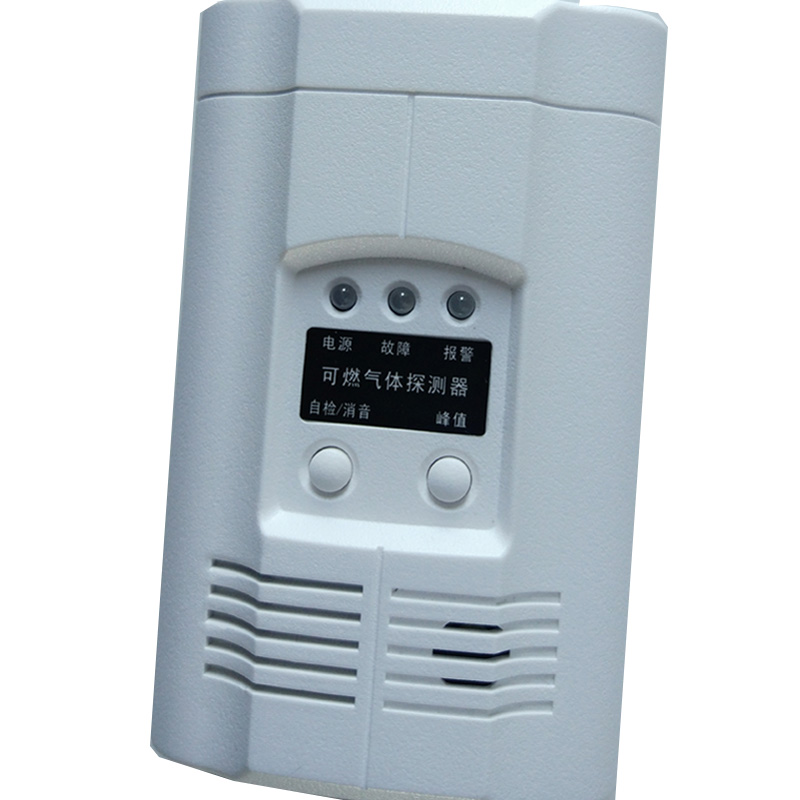

AC220V Powered Combustible Gas Detector LPG LNG Gas Alarm Sensor for Gas Leaking Detection
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | netural packing |
Quick Details
- Brand Name: Zoanco
- color: ceiling white
- Executive standard: ce
- Operating Voltage: 220VAC
- Product name: Combustible Gas detector
- Model Number: GS502Q
- Operating Voltage: AC220V/50HZ
- Power Consumption: <3W (Standby), <4W (Alarm)
- Value of Detection Threshold: LNG Gas: 5000ppm (10%LEL
- Sensor lifetime: > 3 years
- Alarm: Red LED with 80dB alarm
Specifications
Skype firealarm87 /wechat 15220176087
General
General
the gas alarm is designed for single station use. Small and compact, the design and color makes it ideal for use in the home, small commercial properties, and recreational vehicles. It is intended to detect leakage of natural gas (methane gas), town gas, and bottled gas (propane gas). the unit is designed for AC wire-in applications. the gas alarm can be mounted high (for methane gas) or low (for LPG gas). It is equipped with a sturdy metal mounting bracket for quick, easy, and secure installation.
Key Specifications/Special Features
Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.
Easy to install, mounting bracket included.
Loud 85dB alarm and LED warning light.
High quality durable sensor.
Self diagnostic function by MCU intelligent software.
Excellent reliability & High stability.
Ideal for all kitchens.
TECHNICAL SPECIFICATIONS
Unit Dimensions: 122mm (H) x 76 mm (W) x 38 mm (D)
Color: Ceiling White
Operating Temperature: -10C to +50C
Ambient Humidity: 95% RH
Alarm Horn: 85dB at 3m (10 feet)
Operating Voltage: 220VAC
Power Consumption: <1.5W (Standby), <5W (Alarm)
Value of Detection Threshold (Lower Explosive Limit):
Natural Gas: 5000ppm (10% LEL)
LPG: 2000PPM (10% LEL)
Coal Gas: 800PPM (2% LEL)
Method of Alarm: Flashing Red LED with 85dB alarm
Warm up Time: approximately 60 Seconds
Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.
Easy to install, mounting bracket included.
Loud 85dB alarm and LED warning light.
High quality durable sensor.
Self diagnostic function by MCU intelligent software.
Excellent reliability & High stability.
Ideal for all kitchens.
TECHNICAL SPECIFICATIONS
Unit Dimensions: 122mm (H) x 76 mm (W) x 38 mm (D)
Color: Ceiling White
Operating Temperature: -10C to +50C
Ambient Humidity: 95% RH
Alarm Horn: 85dB at 3m (10 feet)
Operating Voltage: 220VAC
Power Consumption: <1.5W (Standby), <5W (Alarm)
Value of Detection Threshold (Lower Explosive Limit):
Natural Gas: 5000ppm (10% LEL)
LPG: 2000PPM (10% LEL)
Coal Gas: 800PPM (2% LEL)
Method of Alarm: Flashing Red LED with 85dB alarm
Warm up Time: approximately 60 Seconds
