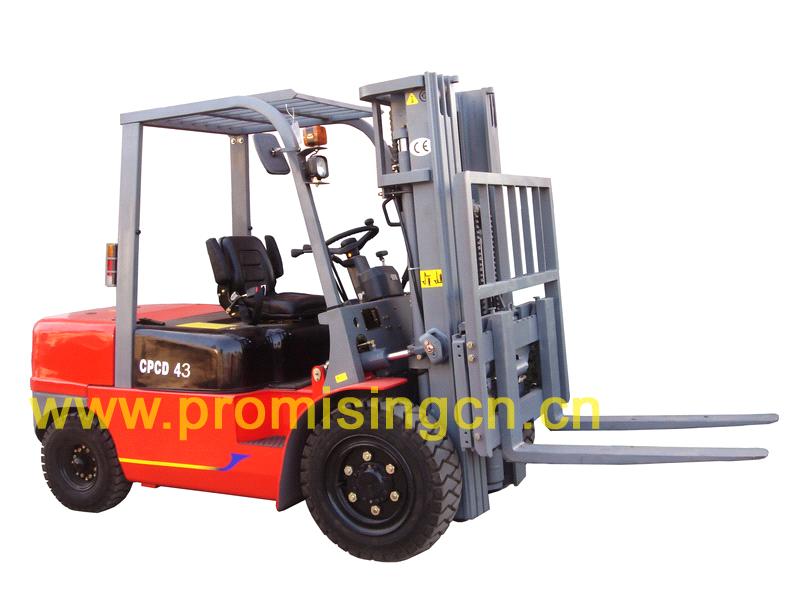

New Model Diesel Forklift Truck CPCD43

Specifications

4.3T diesel forklift, 4.3T diesel forklift truck, 4.3 ton diesel forklift, 4.3T capacity diesel forklift, 4.3T diesel fork lift truck, 4.3T diesel powered forklift, 4.3 ton diesel powered forklift, 4.3T diesel fired forklift truck, diesel fired forklift 4.3T capacity, 4 ton diesel forklifts, 4 ton diesel fork lift, diesel fork lift truck 4T capacity, 4300kg diesel forklift truck, 4300kg capacity diesel forklift truck, diesel powered forklift truck 4300kg capacity, 4300kg capacity diesel fired forklifts, 4.3T internal combustion forklift, 4.3 ton internal combustion forklift, 4T internal combustion fork lift truck, 4.3 ton counterbalance diesel forklift truck, 4.3T counterbalanced diesel forklifts

Features:

1. Intelligent Drive-monitoring System

The digital intelligent drive-monitoring system of our diesel forklift truck can facilitate obtaining the operation data of the diesel forklift easily, so as to achieve the whole-process control of the forklift.

2. Full Hydraulic Flexible Steering System

The full hydraulic steering system of our diesel forklifts can greatly reduce the fatigue of the operator. The steering system uses a horizontal oil cylinder on the compact steering axle and guarantees a reliable steering.

3. Classical Space Frame Structure

Our diesel forklift truck uses the classical YTO ASF space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.

4. Good-view Mast

The optimized rail section design of the mast enables the driver to enjoy a good and wide view.

Technical Specifications:

Model: CPCD43

Power Type: Diesel

Rated Capacity: 4300kg

Load Center: 500mm

Lifting Height: 3000mm

Mast Tilt Angel (F/R): 6/12 deg.

Front Overhang: 515mm

Wheel Base: 1900mm

Wheel Tread (F/R): 1040/980mm

Dead Weight: 5180kg

Free Lift Height: 170mm

Min. Turning Radius: 2710mm

Min. Ground Clearance - Under Mast: 135mm

Min. Ground Clearance - Wheelbase Center: 160mm

Service Brake: Hydraulic Foot Pedal

Parking Brake: Mechanical Hand Lever

Lifting Speed (full-load): 380mm/s

Lowering Speed: Full-load < 600mm/s, No-load > 300mm/s

Travel Speed (no-load): 20km/h

Max. Gradeability (full-load): 18%

Max. Tractive Force (full-load/no-load): 20/16kN

Weight Distribution with load (F/R): 7930/1520kg

Weight Distribution without Load (F/R): 2160/2990kg

Engine Model: A495BPG

Engine Manufacturer: XINCHANG

Engine Rated Power: 42kW/2650rpm

Max. Torque/rpm of Engine: 174N·m/1800rpm

Engine Displacement: 2.98L

Battery Voltage: 12V

Battery Capacity: 100Ah

Gearbox Transmission Type: Hydraulic torque converter

Gear Shift (F/R): I/I

Tyre Type: Pneumatic Tyres

TyreModel - Front: 250-15-16PR

Tyre Model - Rear: 6.5-10-12PR

ForkDimension: 50x140x1070mm

Overall Length (without fork): 2970mm

Overall Width: 1310mm

Overall Height - Mast Extended: 4240mm

Overall Height - Mast Lowered: 2170mm

Overall Height - Overhead Guard: 2170mm

Note:

1. Technical specifications are for standard models only.

2. Other optional accessories, functions and requirements are available upon request.

3. All specifications and design characteristics are subject to change without prior notice.

Optional Engine:

Model: 4JG2

Manufacturer: ISUZU

Rated Power: 44.9kW / 2450rpm

Max. Torque: 186N·m /1800rpm

Displacement: 3.059L
