Home  >Products Catalog > Flotation Machine > Flotation Cell

Flotation Cell SafeBuy Supplier Member

FOB Price: 100.00 - 10,000.00 USD/Set
Supply Ability: 10 Set/Sets per Week
Shipping: according to customer's requirement
Payment Terms: L/C, T/T, D/A
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: Export standard packaging

Specifications

Flotation Machine

    This type of flotation machine is formed by U through solid, hollow shaft inflation, suspension rotor and new type impeller. The cone impeller lean backwards, the blending quantity is big and the pressure head is small, the advantages are: simple structure and low energy consumption. Inside the impeller, there is air distributor, which distributes air into most parts of impeller evenly.
    When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re-mix with air. The remained slurry flows to the next trough until becomes residue.

Main Technical Parameters:
SF Series:
Model Volume(m³) Size of tank (L×W×H) (mm) Impeller Dia. (mm) Impeller speed(r/min) Capacity(m³/min) Motor power(kw) Air flow sucked (m³/㎡min) Weight of singe tank(kg)
SF-0.15 0.15 500×500×600 200 536 0.06-0.18 1.5/0.55 0.8-1 269
SF-0.37 0.37 700×700×750 296 386 0.2-0.4 1.5/0.55 0.8-1 468
SF-0.7 0.7 820×900×950 350 400 0.3-0.9 3/1.1 0.8-1 805
SF-1.2 1.2 1100×1100×1100 450 312 0.6-1.2 5.5/1.1 1-1.2 1373
SF-2.8 2.8 1700×1600×1150 550 268 1.5-3.5 11/1.5 1-1.2 2138
SF-4 4 1850×2050×1200 650 220 2--4 15/1.5 1-1.2 2582
SF-8 8 2200×2900×1400 760 191 4--8 30/1.5 0.9-1 4129
SF-10 10 2200×2900×1700 760 191 5--10 30/1.5 0.9-1 4486
SF-16 16 2850×3800×1700 760 191 5--16 30×2/1.5 0.9-1 8320
SF-20 20 2850×3800×2000 760 191 5--20 30×2/1.5 0.9-1 9828
Flotation Machine
Flotation separator is used in classifying non-ferrous and ferrous metal mineral. SF is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared to flotation cells, its spirit is big; the power loss is low, and the impeller lap wears lightly. Description of Flotation Machine

Flotation separator is used in classifying in non-ferrous and ferrous metal mineral. SF is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared with flotation cell, the power loss is low and the impeller lap wears lightly. The impeller diameter is small, the rotation velocity low, less electricity consumption, and automatic control.

Working Principle of Flotation Machine When flotation cell works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until becomes residue. Features List of Ore Flotation Equipment

(1)The capacity of air suction is large; the power consumption is low.
(2)Every machine has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplement and equipment; the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational; the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.

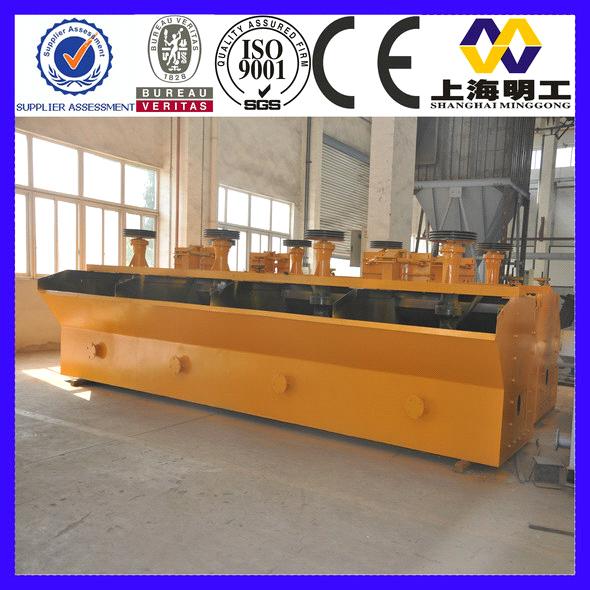

flotation cell
