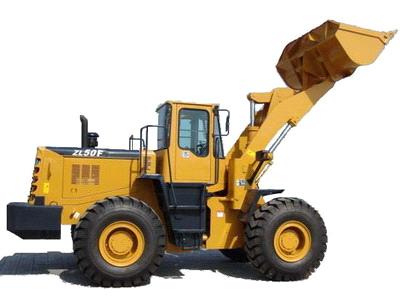

CE Hydraulic Joystick Control 5T Lift Capacity Wheel Loader ZL50F
| FOB Price: | 44,000.00 - 48,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 35 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL50F
- Type: Front Loader
- Dimension(Long * Breadth * High): 7920*3050*3400mm
- Rated Load: 5000kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Overseas service center available
- Total Weight: 17100kg
- Rated Bucket Capacity: 3.0m3
- Max. Dumping Height: 3150mm
- Max. Dumping Reach: 1250mm
- Overall Dimension (L x W x H): 7920*3050*3400mm
Specifications
Hydraulic Joystick Control 5T Lift Capacity With CE Wheel Loader ZL50F
1.4 WD Wheel Loader
2.5T Wheel Loader
3.Optional Attachments and Colors
Front Loader Bucket Features:
1. Central articulated frame, small turning radius, mobile and flexible, lateral stability, easy to operate in the narrow space.
2. Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable.
3. Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety.
4. WEICHAI STYER turbo-charged diesel engine is high power and torque, low fuel consumption and noise, high reliability .Double-stage air filter is standard equipment for dusty fields.
5. Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable.
6. Twin pump-merging flow of working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy.
7. Pilot hydraulic control system makes operation easy and comfortable.
8. The big loading engine side covers made in steel are of good appearance and suitable for maintenance.
1. Central articulated frame, small turning radius, mobile and flexible, lateral stability, easy to operate in the narrow space.
2. Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable.
3. Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety.
4. WEICHAI STYER turbo-charged diesel engine is high power and torque, low fuel consumption and noise, high reliability .Double-stage air filter is standard equipment for dusty fields.
5. Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable.
6. Twin pump-merging flow of working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy.
7. Pilot hydraulic control system makes operation easy and comfortable.
8. The big loading engine side covers made in steel are of good appearance and suitable for maintenance.
Main Technical Parameters:
|
Model: ZL50F
|
||
|
|
Item
|
Parameters
|
|
Performance
|
1. Rated Load
|
5000kg
|
|
2. Total Weight
|
17100kg
|
|
|
3. Rated Bucket Capacity
|
3.0m3
|
|
|
4. Max. Ttractive Force
|
152KN
|
|
|
5. Max. Breakout Force
|
≥170KN
|
|
|
6. Max. Gradeability
|
30°
|
|
|
7. Max. Dumping Height
|
3150mm
|
|
|
8. Max. Dumping Reach
|
1250mm
|
|
|
9. Overall Dimension (L x W x H)
|
7920*3050*3400mm
|
|
|
10. Min. Turning Radius
|
6640mm
|
|
|
Engine
|
11. Model
|
WEICHAI STEYR WD615G220/Cummins 6CTAA8.3-C215
|
|
12. Type
|
In-line, Water Cooling, Dry Cylinder, Fuel Injection
4-stroke, Water Cooling, Injection, Turbocharged
|
|
|
13. No. of Cylinder-Bore/Stroke
|
6-126×130mm/6-114x135mm
|
|
|
14. Rated Power
|
162 kW – 2400rpm/160 kW--2200r/min
|
|
|
15. Max. Torque
|
860N·m/980N.m
|
|
|
16. Min. Fuel-consume Ratio
|
≤215g/kW·h
|
|
|
Transmission System
|
17. Torque Converter
|
YJ375
|
|
18. Gearbox Mode
|
Planetary
|
|
|
19. Gear Shift
|
2 Forward Shift, 1 Reverse Shift
|
|
|
20. Max. Speed
|
38km/h
|
|
|
Drive Axle
|
21. Main Reducing Mode
|
Bevel Gear Grade 1 Reduction
|
|
22. Hub Reduction Mode
|
Planetary Reduction Grade 1
|
|
|
23. Wheel Tread
|
2250mm
|
|
|
24. Wheel Base
|
3200mm
|
|
|
27. Min. Ground Clearance
|
450mm
|
|
|
Hydraulic System
|
28. System Working Pressure
|
18MPa
|
|
29. Boom Raising Time
|
5.95s ± 0.2s
|
|
|
30. Total Cycle Time
|
10.95s ± 0.5s
|
|
|
29. Fuel Tank Capacity
|
300L
|
|
|
30. Automatic Release Function
|
Yes
|
|
|
Brake system
|
31. Service Brake
|
Air Over Hydraulic Disc Brake on 4 Wheels
|
|
32. Parking Brake
|
Manual Ring-hub Brake
|
|
|
Tyre
|
33. Type Specification
|
23.5-25
|
|
34. Front Tyre Pressure
|
0.4Mpa
|
|
|
35. Rear Tyre Pressure
|
0.35Mpa
|
|
We have various models that can meet your different capacity needs. Any colors are available upon request.
