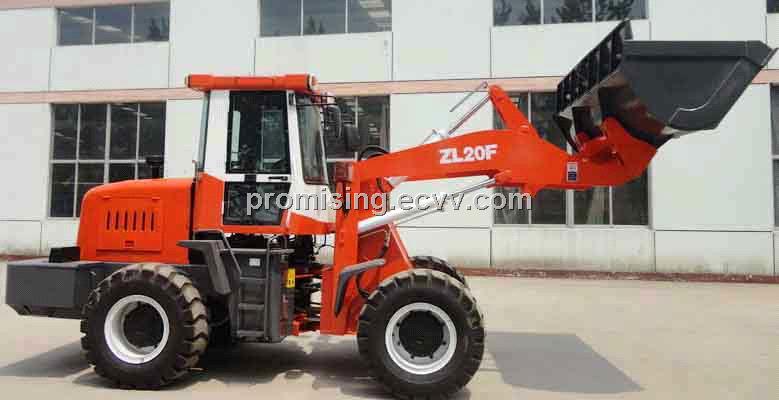

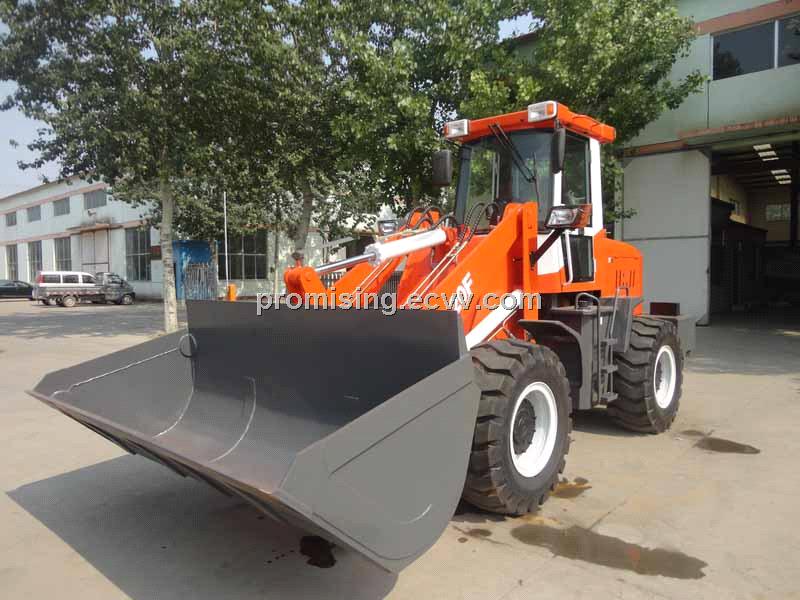

2T Wheel Loader ZL20F With ROPS

FOB Price: 4,000.00 - 20,000.00 USD/Set
Supply Ability: 200 Set/Sets per Month
Shipping: 35 days
Payment Terms: L/C, T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: nude

Quick Details

  • Condition: New
  • Brand Name: Dragon Loader
  • Model Number: ZL20F
  • Type: Front Loader
  • Dimension(Long * Breadth * High): 5400*1950*2850 mm
  • Rated Load: 2000 kg
  • Certification: CE
  • Warranty: 12 months
  • After-sales Service Provided: Overseas service center available
  • Total Weight: 6800 kg
  • Rated Bucket Capacity: 1.0 -1.7 m3
  • Dumping Height: 3300 mm
  • Dumping Reach: 1300 mm

Specifications

2T Loader ZL20F With ROPS:
1. Rated Load: 2000kg
2. Engine: WEICHAI 4105/DONGFANGHONG 4108G94A /YUCHAI 4105
3. Rated Power: 57 kw/60 kw/62 kw
4. Optional color



1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;
4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
5. Using 16/70-20 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
6. Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;
7. This small wheel loader adopts ZL280 integrated torque converter, and the whole machine is fully hydraulic transmission;
8. This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
9. Power system adopts WEICHAI HUAFENG 4NRSG3, DONGFANGHONG YT4B2-24, or YUCHAI 4105 direct injection, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10. This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.




Parameter:
Model: ZL20F

Item
Parameters
Performance
1 . Rated Load
2000 kg
2. Total Weight
6800 kg
3. Rated Bucket Capacity
1.0 -1.7 m3
4. Max. Tractive Force
50.8 KN
5. Max. Breakout Force
≥ 60.8 KN
6. Max. Gradeability
38°
7. Dumping Height
3300 mm
8. Dumping Reach
1300 mm
9. Raising Time
≤ 6.0 s
10. Total Cycle Time
≤ 11.5 s
11. Overall Dimensions (L x W x H)
5400*1950*2850 mm
12. Min. Turning Radius
3300 mm
Engine
13. Model
WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B2-24 /YUCHAI 4105
14. Type
Four-cylinder, Inline, Water-cooled, Four-stroke Engine
15. Rated Power
60 kW/60 kW/62 kW
16. Rated Speed
2400 rpm
17. Min. Fuel Consumption Ratio
≤ 251.6 g/kW· h
Transmission
18. Hydraulic Torque Converter
ZL280 Integrated Torque Converter
19. Gear Shift
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed
25 km/h
Drive Axle
21. Model of Axle
ZL20 Hub Reduction Axle (big)
22. Wheel Tread
1600 mm
23. Wheel Base
2440 mm
Drive
24. Mode
4-wheel Drive
Hydraulic System
25. System Working Pressure
20 Pa
26. Fuel Tank Capacity
93 L
Brake System
27. Service Brake
Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake
Flexible Shaft Controlled Disc Brake
Tyre
29. Type Specification
16/70-20
30. Front Tyre Pressure
0.40 Mpa
31. Rear Tyre Pressure
0.35 Mpa


We have various models that can meet your different capacity needs. Any colors are available upon request.
