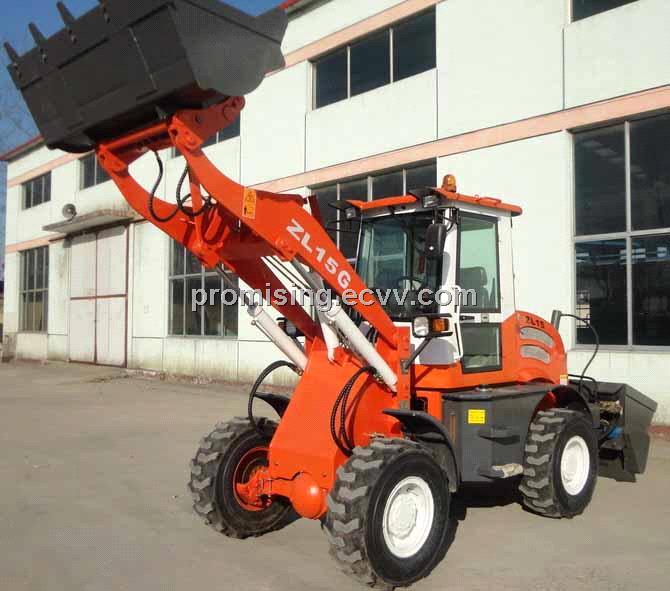

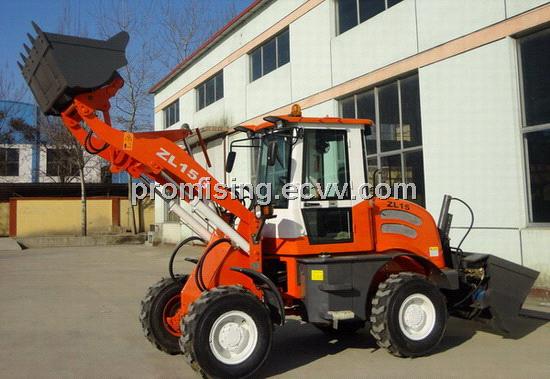

Wheel Loader ZL15G With Hydraulic Torque Converter
| FOB Price: | 4,000.00 - 50,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 35 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL15G
- Type: Front Loader
- Dimension(Long * Breadth * High): 5060*1690*2630 mm
- Rated Load: 1500 kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Overseas service center available
- Total Weight: 3450 kg
- Rated Bucket Capacity: 0.7 m3
- Dumping Height: 2800 mm
- Dumping Reach: 1050 mm
- Overall Dimensions (L x W x H): 5060*1690*2630 mm
- Rated Power: 36.8 kw
Specifications
Features of Euro III construction equipment mini loader:
1.Adopting hydraulic-mechanical transmission;
2.Adopting central articulated frame and load-sensing hydraulic steering gear;
3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle;

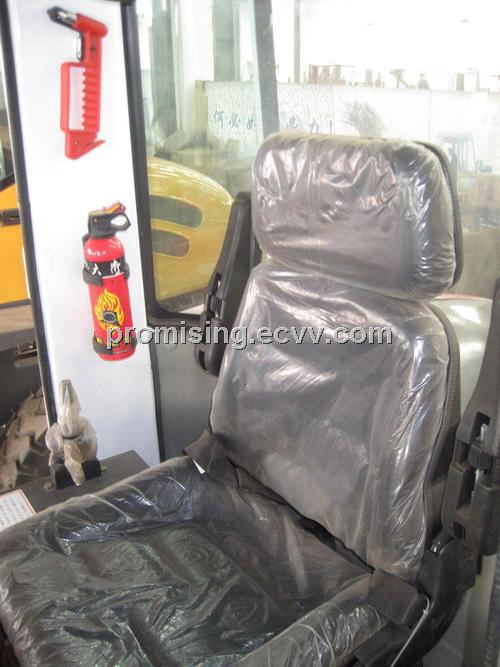

4.Fully enclosed cab with adjustable and suspension seat;
5.Using 14-17.5 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
6.Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 Wheels;
7.This small wheel loader adopts ZL265 integrated torque converter, the whole machine is fully hydraulic transmission, and the model of axle is hub reduction axle;
8.This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
9.The gearbox of this wheel loader adopts electronic speed control valve to lower manual labor, make the operation more comfortable and increase working efficiency;
10. Power system adopts XINCHAI A498BT1 (EURO III) direct injection, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
11.This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
Technical Parameters:
|
Model: ZL15G
|
||
|
|
Item
|
Parameters
|
|
Performance
|
1 .Rated Load
|
1500 kg
|
|
2. Total Weight
|
3450 kg
|
|
|
3. Rated Bucket Capacity
|
0.7 m3
|
|
|
4. Max. Tractive Force
|
30 KN
|
|
|
5. Max. Breakout Force
|
≥ 30 KN
|
|
|
6. Max. Gradeability
|
38°
|
|
|
7. Dumping Height
|
2800 mm
|
|
|
8. Dumping Reach
|
1050 mm
|
|
|
9. Raising Time
|
≤ 5.0s
|
|
|
10. Total Cycle Time
|
≤ 9.5 s
|
|
|
11. Overall Dimensions (L x W x H)
|
5060*1690*2630 mm
|
|
|
12. Min. Turning Radius
|
3200 mm
|
|
|
Engine
|
13. Model
|
XINCHAI A498BT1 (EURO III)
|
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Engine
|
|
|
15. Rated Power
|
36.8 kw
|
|
|
16. Rated Speed
|
2400 rpm
|
|
|
17. Min. Fuel Consumption Ratio
|
≤ 230 g/kw·h
|
|
|
Transmission
|
18. Hydraulic Torque Converter
|
ZL265 Integrated Torque Converter
|
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
|
20. Max. Speed
|
25 km/h
|
|
|
Drive Axle
|
21. Model of Axle
|
ZL16 Hub Reduction Axle (small)
|
|
22. Wheel Tread
|
1400 mm
|
|
|
23. Wheel Base
|
2150 mm
|
|
|
Drive
|
24. Mode
|
4-way Drive
|
|
Hydraulic System
|
25. System Working Pressure
|
16 Pa
|
|
26. Fuel Tank Capacity
|
86 L
|
|
|
Brake System
|
27. Service Brake
|
Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
|
|
28. Parking Brake
|
Hand Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
29. Type Specification
|
14-17.5
|
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
|
