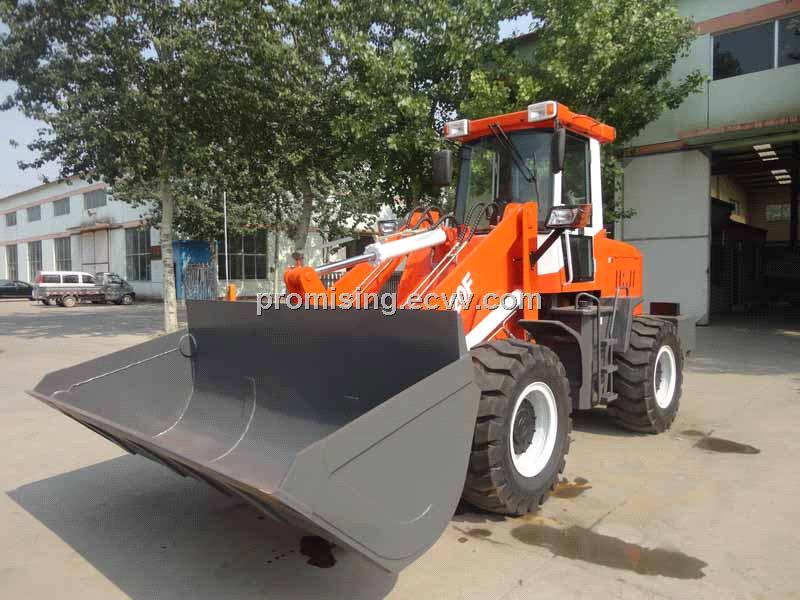

2T Wheel Loader ZL20F with Weichai Engine

Specifications

Small Wheel Loader ZL20F:

2.0T Wheel loader ZL20F is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. Compact wheel loader with 2.0 ton capacity can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.

Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;

Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;

Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;

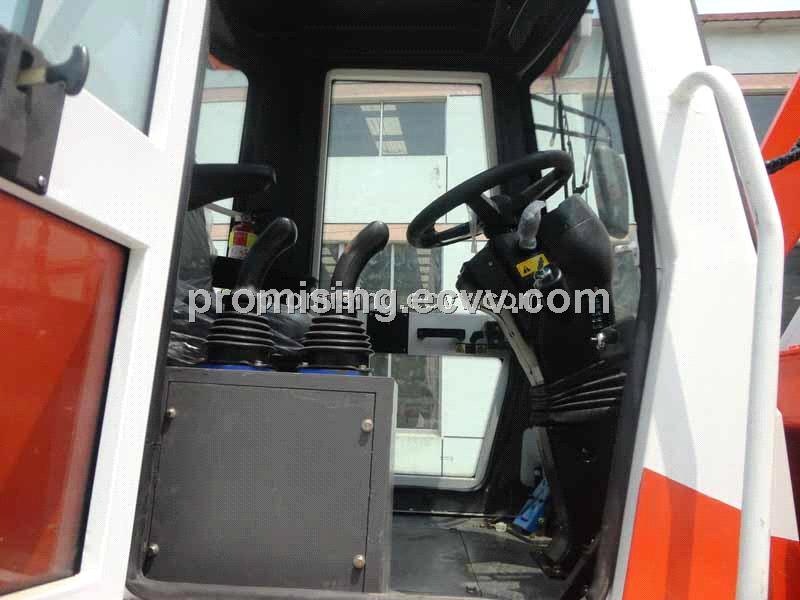

Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;

Using 16/70-20-16PR ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;

Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;

This 2T wheel loader adopts ZL280 integrated torque converter, and the whole machine is fully hydraulic transmission;

This front loader with 2000kg capacity can be optionally equipped with pilot control system (joystick) to make it easy to operate and increase the hydraulic performance of the whole machine;

Power system adopts WEICHAI HUAFENG 4NRSG3, DONGFANGHONG YT4B2-24, or YUCHAI 4105 direct injection, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;

This 2 ton front wheel loader can be equipped with optional hydraulic quick hitch (quick coupler), and this implement hitch enables this front end loader to change quickly among multiple attachments, such as hay grapple, grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade, snow bucket, V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc.
