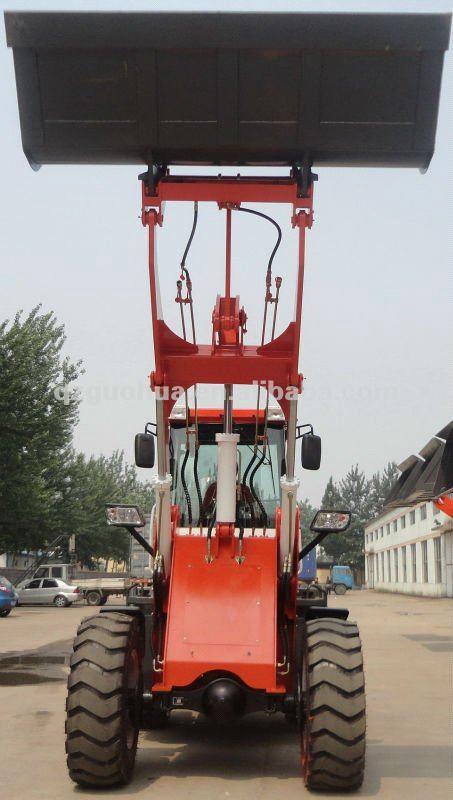

4WD 3.0T Small Wheel Loader ZL30F
| FOB Price: | 4,000.00 - 40,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 35 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL30F
- Type: Front Loader
- Dimension(Long * Breadth * High): 6900*2050*2950 mm
- Rated Load: 3000 kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Overseas service center available
- Total Weight: 7000 kg
- Rated Bucket Capacity: 1.5-1.9 m3
- Dumping Height: 3500 mm
- Dumping Reach: 1300 mm
- Overall Dimensions (L x W x H): 6900*2050*2950 mm
Specifications
ZL30F Wheel Loader
Use: Wheel loader ZL20F is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or transfer loosing soil, sand and stone, coal cinder, trash and other loosing materials. Compact wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
|
Model: ZL30F
|
||
|
|
Item
|
Parameters
|
|
Performance
|
1 . Rated Load
|
3000 kg
|
|
2. Total Weight
|
7000 kg
|
|
|
3. Rated Bucket Capacity
|
1.5-1.9 m3
|
|
|
4. Max. Tractive Force
|
61 KN
|
|
|
5. Max. Breakout Force
|
≥ 72 KN
|
|
|
6. Max. Gradeability
|
38°
|
|
|
7. Dumping Height
|
3500 mm
|
|
|
8. Dumping Reach
|
1300 mm
|
|
|
9. Raising Time
|
≤ 6.0 s
|
|
|
10. Total Cycle Time
|
≤ 11.5 s
|
|
|
11. Overall Dimensions (L x W x H)
|
6900*2050*2950 mm
|
|
|
12. Min. Turning Radius
|
3800 mm
|
|
|
Engine
|
13. Model
|
DONGFANGHONG 4108 Turbocharged Engine
|
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Engine
|
|
|
15. Rated Power
|
75kw
|
|
|
16. Rated Speed
|
2400 rpm
|
|
|
17. Min. Fuel Consumption Ratio
|
≤ 210 g/kw· h
|
|
|
Transmission
|
18. Hydraulic Torque Converter
|
ZL280 Split Torque Converter
|
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
|
20. Max. Speed
|
25 km/h
|
|
|
Drive Axle
|
21. Model of Axle
|
ZL20 Hub Reduction Axle (big)
|
|
22. Wheel Tread
|
1650 mm
|
|
|
23. Wheel Base
|
2600 mm
|
|
|
Drive
|
24. Mode
|
4-way Drive
|
|
Hydraulic System
|
25. System Working Pressure
|
20 MPa
|
|
26. Fuel Tank Capacity
|
100 L
|
|
|
Brake System
|
27. Service Brake
|
Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
|
|
28. Parking Brake
|
Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
29. Type Specification
|
16/70-24
|
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
|
