ZLQ-10A High Precision Oxy Cutting Machine

FOB Price:	5,499.00 - 7,499.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	FOB Shanghai, delivery time 3-5 days
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	wooden case

Specifications

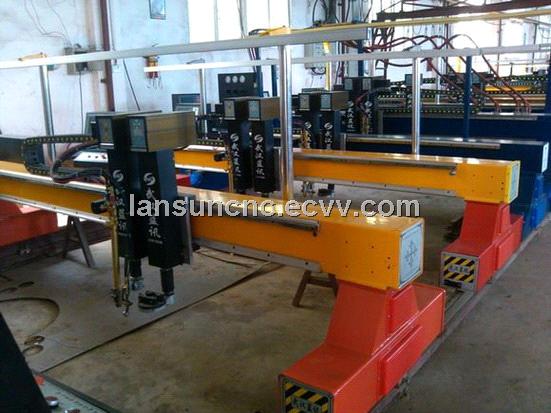

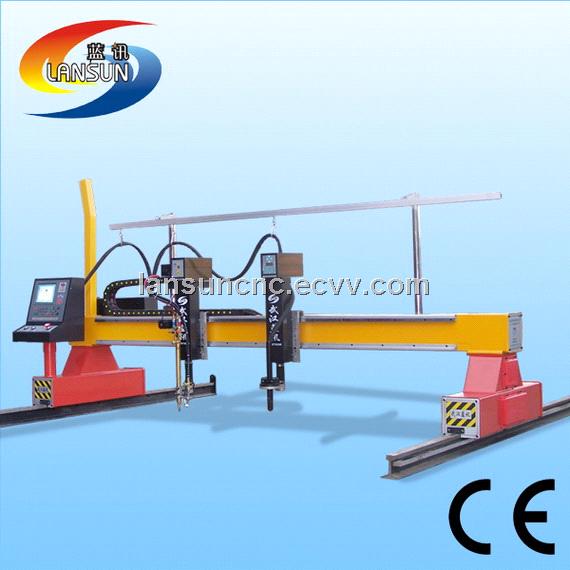

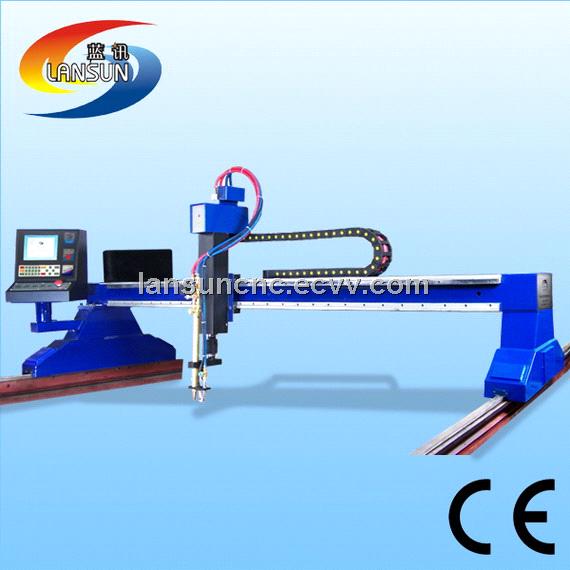

ZLQ-10A high precision oxy cutting machine

Features:

1. Small Gantry structure, span from 2000mm to 3500mm, longitudinal rail can be lengthened.

2. Dual drive for stable performance.

3. Cross beam adopts optical axis linear guide to assure cutting accuracy.

4. Multiple configuration for choice, flame only, plasma only, strip, plasma & flame.

5. Auto height control system.

6. Multiple CNC systems are available in options.

7. Can import data via USB flash disk.

8. Easy operation for workers.

9. Simple control panel is above the cutting torch for moving torch easier.

10. CE & ISO approved.

Technical specification:

Cross Beam Length(X axis)	3m (can be lengthened to 3.5m max)
Longitudinal Rail Length(Y axis)	3m ( can be customized)
Effective Cutting Width (X axis)	2.2m
Effective Cutting Length (Y axis)	1.5m
Cutting Mode	Flame only; Plasma only; Flame and Plasma
Drive Mode	Bilateral-side
Drive Method	Rack and pinion drive for X and Y axes
Flame Cutting Thickness	5-200mm
Plasma Cutting Thickness	1-60mm (according to the specification of plasma power source)
Cutting Speed	Flame: 0-3500mm per minute; Plasma: 0-8000mm per minute
Moving Precision	0.01mm per step
Power Source (option)	220V 50Hz 500-1000W
Nesting Software (option)	INTERGNPS, FASTCAM
Cutting Gas	Acetylene, Propane
Plasma Gas	Pressed air, Oxygen, N2
Automatic Torch Height Controller(option)	CHC600	Capacitive height controller for flame cutting
	PHC330	Arc voltage height controller for plasma cutting

Application:

CNC plasma cutter is widely applied in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive, metal cutting service ,stainless steel cutting service, carbon steel cutting service ,cnc plasma cutting service ,cnc flame cutting service , etc.

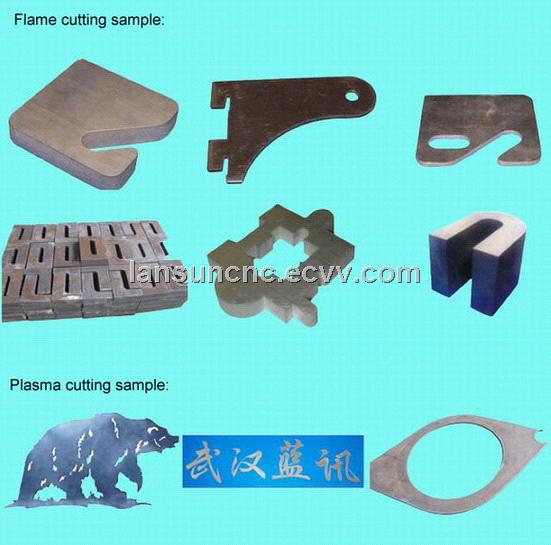

Flame cutting is suitable for mild steel, high carbon steel plate.

Plasma cutting is suitable for stainless steel, aluminum, copper and other non-ferrous metal plate.

After-sale service and Guarantee:

After-sale service and maintenance

User can contact our after-sale department via phone or web (E-mail, MSN, Skype, etc), we ensure giving feedback within 24 hours. If problem can not be solved, we will send our engineers to solve on the scene.

Quality warranty.

The warranty is within 12 months after CNC plasma cutter finish fitting and start running, during warranty, we provide free solution for problems caused by normal use, such as product quality, process precision, cannot cut normal material, etc… After 12 months, we also supply the maintenance and just collect some basic fees.
