Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Carton

Specifications

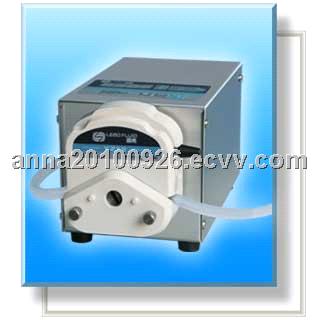

BT102S Micrometeor Speed -Variable Peristaltic Pump

1.Four-figure digital LED indicator display working speed ;

2.Intelligent expert operating system can guarantee smooth operation

3.Easy dispensing function ,it realizes the repeat timing quantitative dispensing .

4.Can drive multi-channels and various and various types of pump heads.

5.Stainless steel housing ,easy to clean ,excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.

6.Internal double-desk isolation structure ,circuit board with conformal coating makes it dust-proof and moisture-proof.

7.External high-low electrical level controls the start/stop ,reversible direction and easy dispensing function ,optically coupled isolator, external analog adjusts the rotate speed .

8.RS485 interface ,MODBUS communication protocol is available ,easy to connect with other equipments.

9.Optional footswitch or timer for dispensing fluid .

For pump head: YZ15, YZ25, DG(1,2)

Flow range: 0.00016~380(ml / min).

Technical parameters:

Speed range: 0.1 ~ 100 rpm

Speed resolution: 0.1 rpm, flow accuracy 0.5%

Supply Voltage: AC220V &AC110V, 50/60Hz

Power ratio: less than 30W

Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity 80%

Protection level: IP31

Dimensions: (L *W * H) 218mm *127mm *122mm

Weight: 2.7kg.

External control functions:

External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; Support RS485 bus, MODBUS communication protocol.
