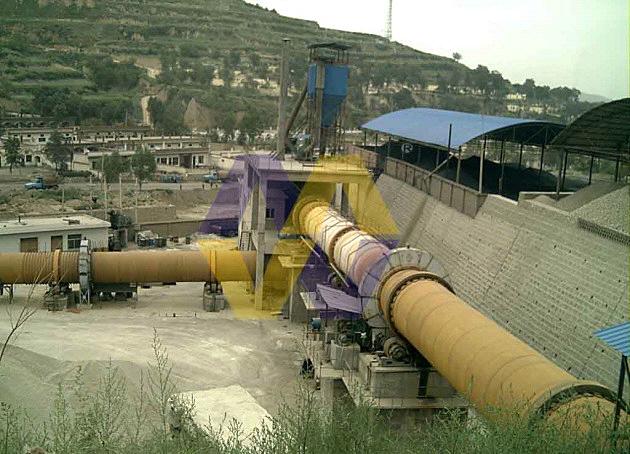

Alumina Rotary Kiln
Feature of Alumina Rotary Kiln:

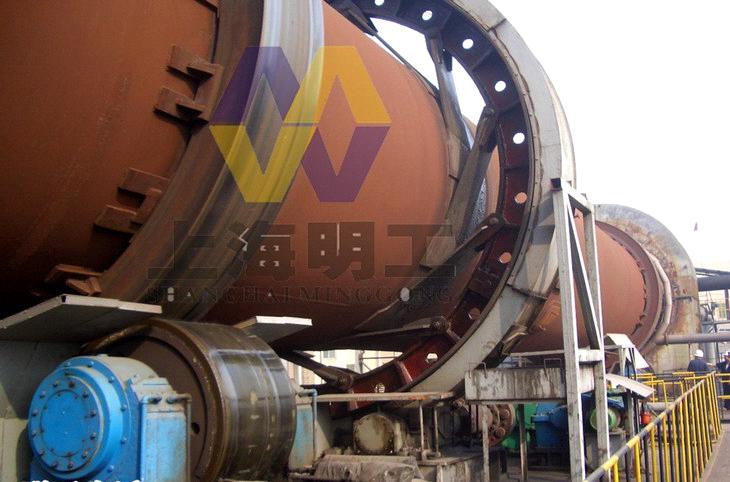

1. Support device of rotary kiln: Advanced shaft structure, automatic temperature measuring device and electrical heating device.
2. Catch wheel of rotary kiln: Including mechanical wheel and hydraulic pressure.
3. Gears of rotary kiln: Single or double. The rotating speed is controlled by regulating motor, DC motor or variable frequency and speed regulation motor. Be reliable, energy-saving and efficient.
4. Cylinder bolster of rotary kiln: Lower bolster has three types: Fixed, zoom and floating. The structure is simple and replacement is convenient it won't hurt cylinder when it need change.
5. Sealing equipment of rotary kiln: There are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feature is adaptive for cylinder rotating and swing. Sealing effect is very good.
6. Rotary Kiln head hood: Including stationery type and flexible type.
Usage of Alumina Rotary Kiln:
Rotary kiln is used for making of cement clinker and there are dry and wet methods to make cement. Metallurgy chemical Rotary kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal och in refractory material industry; For calcimine of calotte and aluminum hydroxide in aluminum manufacturer; For claiming of chrome sand ore and chrome powder ore in chemical plant.
Application of Alumina Rotary Kiln:
Rotary kiln is a kind of thermal equipment, heating materials. It is widely applied in the fields of cement building materials, nonferrous metallurgy, ferrous metallurgy, refractory material, chemical materials and paper making.
Characteristics
The rotary kiln has simple structure, convenient and reliable control during the production process, a few wearing parts, high operation ratio. The rotary kiln produced by our factory has rugged structure, smooth operation, high quality outlet products. Besides, we provide our customers with advanced, efficient vertical heating device, and cyclone heating device.
Main technical parameters of Alumina Rotary Kiln:
| Specifications (m) | Kiln Dimensions | Output | Rotation Speed | Motor Power | Weight | Note | ||||
| Diameter (m) | Length (m) | Obliquity (%) | (t/h) | (r/min) | (kw) | (t) | ||||
| ø 1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ---- | ||
| ø 1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ---- | ||
| ø 1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ---- | ||
| ø 1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ---- | ||
| ø 2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ---- | ||
| ø 2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ---- | ||
| ø 2.4*40 | 2.4 | 40 | 3.5 | 6.2-6.8 | 0.39-2.44 | 55 | 136.5 | ---- | ||
| ø 2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ---- | ||
| ø 2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- | ||
| ø 2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- | ||
| ø 2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- | ||
| ø 2.8*44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Suspension preheating kiln | ||
| ø 3.0*45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | ---- | ||
| ø 3.0*48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln | ||
| ø 3.0*60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | ---- | ||
| ø 3.2*50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Outside disassemble kiln | ||
