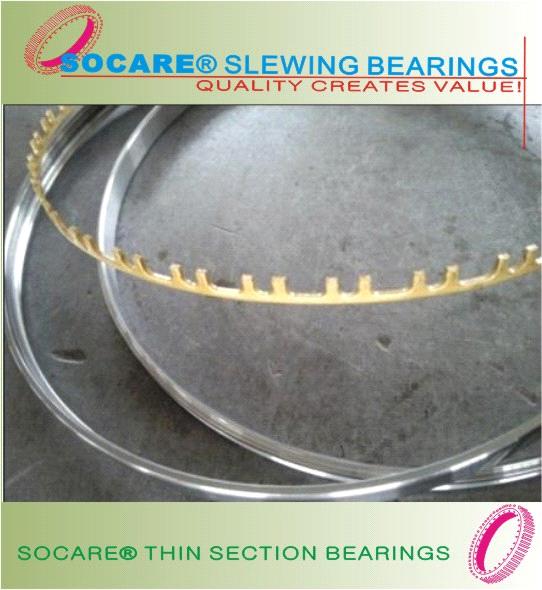

Thin-Section Ball Bearings-SOCARE-SLIM Open Type
| Supply Ability: | 50 Piece/Pieces per Month |
|---|---|
| Shipping: | 30 days,From Qingdao seaport,China |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Standard Exporting Wood Box |
Specifications
SOKING' s SOCARE-Slim™ bearings offer a variety of bearing solutions for even the most unique design challenges. Each SOCARE-Slim™ ball bearing series is based on a single cross section which remains constant as the bore diameter is increased (in sharp contrast to standard bearings, in which the cross section increases as the bore diameter increases). By using the same series of SOCARE-Slim™ bearings throughout a product line, the designer can standardize on common components.
Design features
SOCARE-Slim™ ball bearings include internal fit up, lubricants, separators, and other features that meet the most demanding specifications. Stainless steel SOCARE-Slim™ series of ball bearings provide exceptional corrosion resistance. Soking plating provides corrosion resistance equal to or better than an AISI 440C stainless steel bearing and can be supplied with very quick delivery.
SOCARE-Slim™ ball bearings include internal fit up, lubricants, separators, and other features that meet the most demanding specifications. Stainless steel SOCARE-Slim™ series of ball bearings provide exceptional corrosion resistance. Soking plating provides corrosion resistance equal to or better than an AISI 440C stainless steel bearing and can be supplied with very quick delivery.
Availability
SOCARE-Slim™ ball bearings are available with a variety of separator options to space the rolling elements uniformly and prevent contact between them. Separator types available include: continuous ring " snap-over pocket, " continuous ring circular pocket, formed wire, toroid, PTFE spacers, and ball bearing spacer separators.
SOCARE-Slim™ ball bearings are available with a variety of separator options to space the rolling elements uniformly and prevent contact between them. Separator types available include: continuous ring " snap-over pocket, " continuous ring circular pocket, formed wire, toroid, PTFE spacers, and ball bearing spacer separators.
SOCARE-Slim™ open thin section ball bearings range in bore diameters from 1.000 inch to 40.000 inches. The seven series in the SOCARE-Slim™ product line range from . 187 x . 187 inch to 1.000 x 1.000 inch in cross section. Open bearings are available from stock in three configurations: angular contact bearings (Type A), Conrad assembled deep groove radial ball bearings (Type C), and four-point contact radial bearings (Type X).
In many applications, a single SOCARE-Slim™ four-point contact radial ball bearing can replace two bearings, compacting the design and simplifying the bearing mounting while saving money, creating space, and saving weight.
Main Items availble
And the KC, KD, KF, KG Sereis will be available too.
Main Items availble
KA020AR0; KA025AR0; KA030AR0; KA035AR0; KA040AR0; KA042AR0; KA045AR0;
KA047AR0; KA050AR0; KA055AR0; KA060AR0; KA065AR0; KA070AR0; KA075AR0;
KA080AR0; KA090AR0; KA0100AR0; KA0110AR0; KA0120AR0
KB020AR0; KB025AR0; KB030AR0; KB035AR0; KB040AR0; KB042AR0; KB045AR0;
KB047AR0; KB050AR0; KB055AR0; KB060AR0; KB065AR0; KB070AR0; KB075AR0;
KB080AR0; KB090AR0; KB0100AR0; KB0110AR0; KB0120AR0; KB0140AR0; KB0160AR0
KB0180AR0; KB0200AR0
And the KC, KD, KF, KG Sereis will be available too.
