Sheave Bearings-Full Complement Cylindrical Roller Bearing
| Supply Ability: | 5,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 30 days,From Qingdao seaport,China |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hunan in China |
| Packaging Details: | Standard Exporting Wood Box |
Specifications

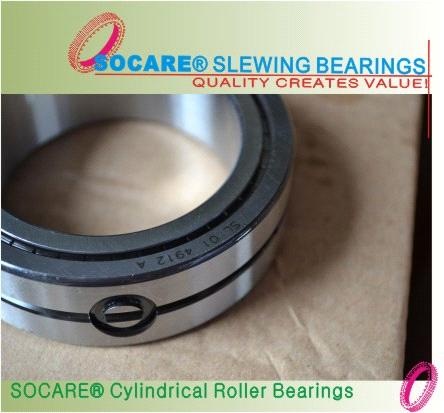

Sheave Bearings-Full Complement Cylindrical Roller Bearing
Cylindrical Roller Bearing with Snap Ring Grooves
© Basic Deisgn: Full complement,Double row,Sealed on both sides
© Highest dynamic & static load ratings:Maximum utilization of bearing section provides
maximum load ratings.
© Superior sealing capability:Unique design rubber contact seal prevents dust and water
invasion
© Location:Easy to locate axially due to snap rings on both sides
© Lubrication:Lubricate with a lithium soap-based grease containing an EP additive.
© Relubrication:Lubricate through lubrication hole and groove in the inner ring
If relubrication holes in outer ring is required,the bearing with suffix W33 should be
selected.
© Operating temperature:Suitable for -30 deg C to + 120 deg C
© Application:Highly suitable in Rope sheaves
|
Lubrication Hole in Inner Ring |
Lubrication Hole in Outer & Inner Ring |
d | D | B | C | r(min) | c | ||
| E5006X NNTS2 | E5006X W33NNTS2 | 30 | 55 | 34 | 33 | 0.6 | 1 | ||
| E5007X NNTS2 | E5007X W33NNTS2 | 35 | 62 | 36 | 35 | 0.6 | 1 | ||
| E5008X NNTS2 | E5008X W33NNTS2 | 40 | 68 | 38 | 37 | 0.6 | 1.5 | ||
| E5009X NNTS2 | E5009X W33NNTS2 | 45 | 75 | 40 | 39 | 0.6 | 1.5 | ||
| E5010X NNTS2 | E5010X W33NNTS2 | 50 | 80 | 40 | 39 | 0.6 | 1.5 | ||
| E5011X NNTS2 | E5011X W33NNTS2 | 55 | 90 | 46 | 45 | 0.6 | 2 | ||
| E5012X NNTS2 | E5012X W33NNTS2 | 60 | 95 | 46 | 45 | 0.6 | 2 | ||
| E5013X NNTS2 | E5013X W33NNTS2 | 65 | 100 | 46 | 45 | 0.6 | 2 | ||
| E5014X NNTS2 | E5014X W33NNTS2 | 70 | 110 | 54 | 53 | 0.6 | 2 | ||
| E5015X NNTS2 | E5015X W33NNTS2 | 75 | 115 | 54 | 53 | 0.6 | 2 | ||
| E5016X NNTS2 | E5016X W33NNTS2 | 80 | 125 | 60 | 59 | 0.6 | 2 | ||
| E5017X NNTS2 | E5017X W33NNTS2 | 85 | 130 | 60 | 59 | 0.6 | 2 | ||
| E5018X NNTS2 | E5018X W33NNTS2 | 90 | 140 | 67 | 66 | 0.6 | 2.5 | ||
| E5019X NNTS2 | E5019X W33NNTS2 | 95 | 145 | 67 | 66 | 0.6 | 2.5 | ||
| E5020X NNTS2 | E5020X W33NNTS2 | 100 | 150 | 67 | 66 | 0.6 | 2.5 | ||
| E5022X NNTS2 | E5022X W33NNTS2 | 110 | 170 | 80 | 79 | 1 | 3 | ||
| E5024X NNTS2 | E5024X W33NNTS2 | 120 | 180 | 80 | 79 | 1 | 3 | ||
| E5026X NNTS2 | E5026X W33NNTS2 | 130 | 200 | 95 | 94 | 1 | 3 | ||
| E5028X NNTS2 | E5028X W33NNTS2 | 140 | 210 | 95 | 94 | 1 | 3 | ||
| E5030X NNTS2 | E5030X W33NNTS2 | 150 | 225 | 100 | 99 | 1 | 3 | ||
