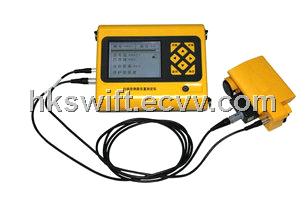

SKR51+ Rebar Location System

Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Purpose

SKR51+ rebar Location system is used to test rebar diameter, distribution, coating thickness in concrete.

Specification

<Technical specification for test of reinforcing steel bar in concrete> JGJ/T152-2008

Performance

Longer service life of the Connector Clip: The instrument has long service life because of using Lemo Connector Clip which comes from Swiss and uses for aircraft industry.

Good quality of signal cable: The signal cable has long service life because of its flexible and substance.

High precision and stability: The instrument can locate the steel-bar accurately and quickly.

Longer service life of the sensor: Improve the service life by paste abrasion resistance allowance bottom of the sensor

Single sensor: No-change sensor in test, switching between high and low test range can assure the precision of test data and the test depth.

Display test information real-time: Display the test data directly to avoid man-made errors.

Grid and section scan mode: Instrument can display steel bar distribution and scan steel bar without concrete boundary limited.

Three-wheel steel-bar scan system: The system can assure scan path along line and the precision of test data.

Powerful Windows data process and analysis software: Software can display analysis result by diagram. Test data can be export to word or Excel easily.

Technical Data

Applicable rebar diameter	Ф6mm～Ф50mm
Tested range of concrete coating thickness	Low range: 6mm～90mm; High range: 7mm～190mm
Permissible error		Low range	High range
	±1	6～59	7～79
	±2	60～69	80～119
	±4	70～90	120～190
Tested range of rebar diameter	Ф6mm～Ф50mm
Permissible error of rebar diameter test	±1 grade
Applicable environmental	Temperature: -10℃～＋40℃; Dampness: <90%RH EMI: no Strong electromagnetic field
Power supply	6 dry cells, work more than 30 times
