RAM Punching Machine Model LPM

Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: suitable for long distance transportation

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Certification: CE
  • Brand Name: www.iseef.com info@iseef.com
  • Type: Die-cutting Machine
  • Condition: New
  • Model Number: LPM
  • Product Type: Garment Labels

Specifications

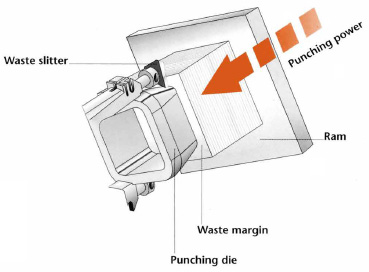

RAM punching machine Model LPM series with raw waste mouth is suitable for RAM punching large volumes of high stacks of material to be cut at once, production of not only all kinds of material labels including paper labels, leather labels, textile labels, and also plastic cards, playing cards, aluminum foil, aluminum plastic, New year card, note book, name card, envelopes of any design of size with an average speed about 900000 pcs per hour. this machine adopts hydraulic pressure system.

with a push-cube self-adjusting to every position of the " V" hold where the pack is positioned in order to obtain a homogeneous pression and distribution of the paper, the working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium production. the working process is completely stability. the die cutting products surface is smooth, and the size is unified and regular with high precision.

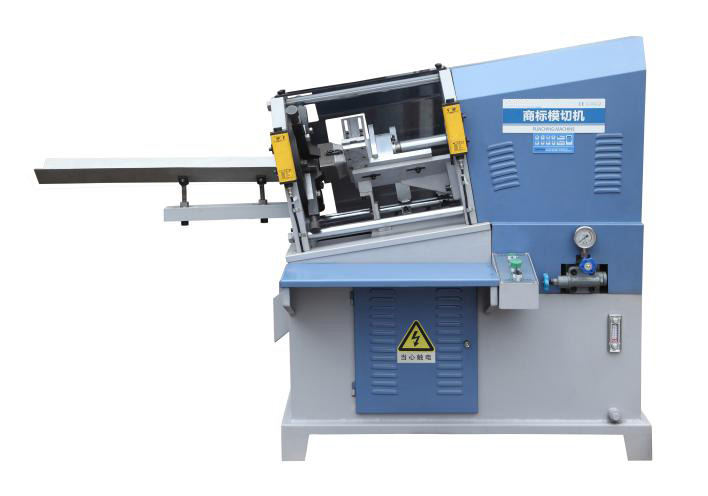

Ram Punching Machine Model LPM





Main Technical Parameter:

Model:

LPM-150

LPM-220

LPM-280

LPM-400

LPM-500

Max.Cutting size:

110*110mm

160*160mm

200*200mm

270*270mm

340*340mm

Min.Cutting size:

10*20mm

10*20mm

55*60mm

120*120mm

150*150mm

Cutting distance:

200mm

200mm

200mm

200mm

200mm

Cutting pressure:

16KN

30KN

40KN

50KN

50KN

Working speed:

±12000sheets/min

Power:

1.5kw

2.2kw

3kw

4kw

4kw

Machine weight:

300kgs

360kgs

560kgs

900kgs

1140kgs

Dimension(mm):

1200*850*1400

1450*850*1500

2300*850*1600

2500*1040*1660

2700*1140*1860
