Iseef Enterprise Inc.

China Manufacturer with main products: Packaging Machinery, Packaging Equipment, Knife Grinding Machines, Label Punching Machines, Laminating Machines, Paper Embossing Machines,...

Home  >Products Catalog > Folder gluers -iseef.com > CE-Pre-fold and Crash lock bottom Corrugated paper Folder gluer SHH-E- ISEEF

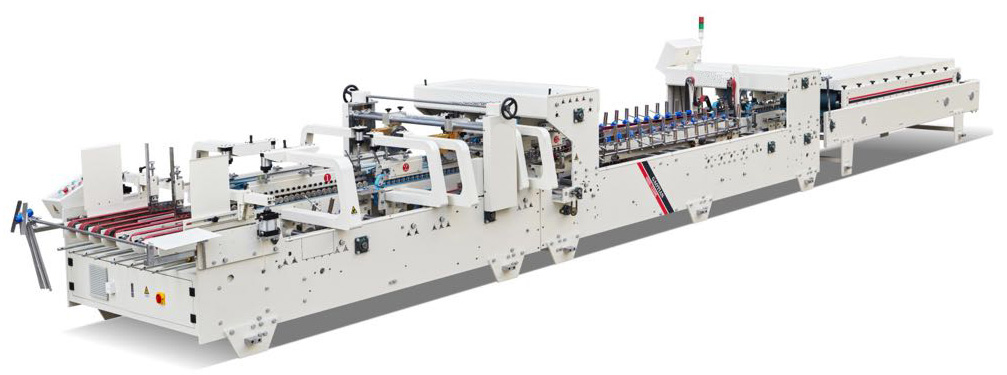

CE-Pre-fold and Crash lock bottom Corrugated paper Folder gluer SHH-E- ISEEF

Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: suitable for long distance transportation

Specifications

SHH-E Series is a new economical High speed and crash lock bottom automatic folder gluer .
SHH-E Series is a new economical High speed and crash lock bottom automatic folder gluer .
The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the corrugated box, gluing side keep stright no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box.



Major technical index
SHH-800E
Type of box
A max
A min
B max
B min
Cmin
Dmax
Fmin
No-edged bottom box
700mm
70mm
620mm
130mm
8mm
70mm
51mm
Edgde Bottom box
700mm
160mm
570mm
180mm
9mm
90mm
85mm
SHH-1200E
Type of box
Amax
Amin
Bmax
Bmin
Cmin
Dmin
Fmin
No-edged bottom box
700mm
70mm
840mm
130mm
8mm
70mm
51mm
Edgde Bottom box
700mm
160mm
790mm
180mm
9mm
90mm
85mm

Characteristics
Max linear velocity
220m/min
Suitable paper quality
220~800g/m² Cardpaper and E and F wave corrugated paper.
Paste box basic form
One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
Way of folding in reverse
One and three fold 90º ,two and four fold 180º
Feeding way
Automatically and continuously feeding
Needed power
6.5KW  380V
Overall Size
10300×1000(1300)×1350mm
