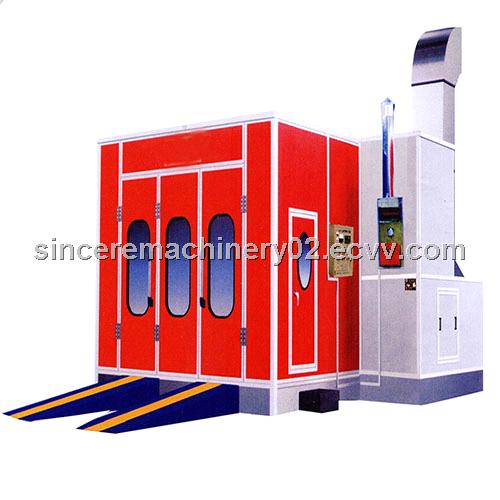

Car Bake Room

Supply Ability:	100 Set/Sets per Month
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Specifications

Features:	Total Power 10.5 kw; 380v/3phase/50hz	Noise < 80 db
1. Walls & Ceiling	- Panels 50mm thick, with foam in the middle and color steel on both sides
2. Basement System	- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple
	- Grid Plates (Galvanized)* 2rows
	- Diamond Plates (Powder Coated or Galvanized)* 3rows
3. Heating System	- Diesel Burner (Italy Riello, G10)* 1unit
	- Heating Exchanger (Stainless Steel material)* 1unit
	- 8~15 minutes reaching the baking temperature 60~80℃
	- Cabinet (rockwool insulation) for the burner & heat exchanger* 1unit; Air Ducts * 2pcs
4. Filter System	- Primary Filter* 1set, filtering rate > 83%
	- Air-Intake Filter* 1set, filtering rate > 97%
	- Air-Exhaust Filter* 1set, filtering rate > 70%

5. Air System	- Air-Intake Fans* 2units, Centrifugal Fans with 4kw motor each
	- Air velocity 0.25m/s
	- Cabinet for the fans* 1 unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit
6. Illumination	- Ceiling Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design
	- Side Lights * 24pcs, 36w each, with Light Fixtures, anti-explosion design
7. E-control Panel	- *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc.
** Included	- All Hardwares, Fasteners, and Sealants

Dimensions:	Length (mm)	Width (mm)	Height (mm)
Booth Outside	7000	5200	3600
Booth Inside	6900	3900	2750
Entrance Door	Equipped with Handle & Lock	3000	2700
Personnel Door	Equipped with Handle & Anti-Explosion Lock	800	2000
