Car Alignment Machine

Supply Ability:	100 Set/Sets per Month
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Specifications

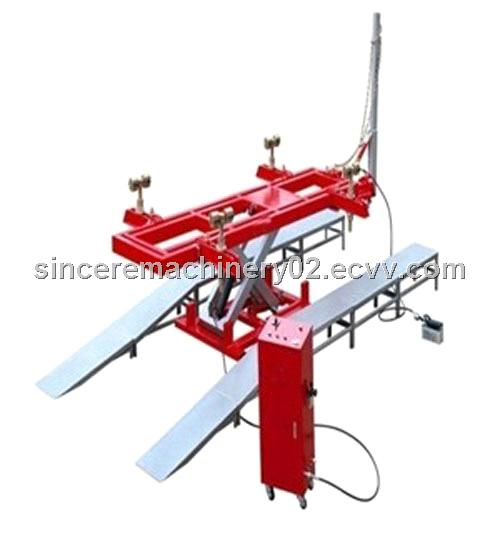

Car Alignment Machine (SINU2)

1. The platform is spliced with shape tube plate through carbon dioxide welding, with high strength and good rigidity.
2. The platform can also be moved easily to work in other places.
3. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
4. The height of the principal clamps is adjustable and this helps to orientate and clamp the car fast, exactly and firmly.
5. Appropriate for operating maintenance of medium or small and cars, especially for auto body shop.

Working platform length	4000mm
Working platform width	854mm
Working platform height	360mm-1025mm
Max working pressure of hydraulic system	70mpa(10000psi)
Max pushing power of cylinder	95KN
The pressure of air source	0.6-0.8mpa
Voltage of power unit	220v/50HZ
Max lifting weight	3000kg
Equipment gross weight	1600kg
