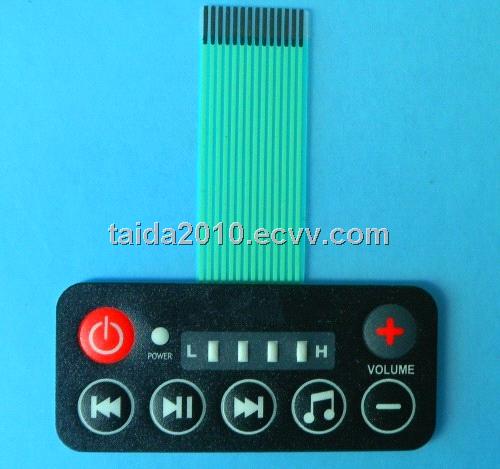

matte finish pet material tactile membrane keypad

FOB Price:	1.36 - 2.38 USD/Piece

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Pearl foam wrapped inside and carton outside

Specifications

Specifications:

1.Overlay Materials: The most commonly used materials are polyester(PET) and

polycarbonate(PC).

2. Rear Adhesive: 3M 467MP, 3M 468MP, etc.

3. Matching color: Pantone and RAL color matching system.

4 .Gloss, semi-gloss or matte

5. Non-tactile,poly dome or metal dome

6 .Standard Tolerances: +/-.010 inch (+/-0.25mm).

Performance

Operating Voltage: 0~35 V DC.

Operating Current: 100 MA Max.

Operating Contact Resistance: Less than 100 OHMS typical

Contact Bounce: Less than 5 Milliseconds typical.

Conductors: Printed silver conductive inks or carbon blend.

RFI and ESD Shielding: Available in most configurations.

Mechanical

Life Expectancy: 1,000,000 actuations per switch position

Actuation Force: 6~24 ounces (170~680g), Range depending on customer

specification

Switch Travel: .005" to .030" (0.1~0.8mm) typical.

Overall Thickness: .020" to .050" (0.5~1.3mm) typical.

Environmental

Storage Temperature: -40°C (-40°F) to +70°C (158°F).

Storage Altitude: Sea level to 35,000 feet.

Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be

designed to operate in most environments.

Humidity: No delamination after 24 hours at 80°C and 90%RH.
