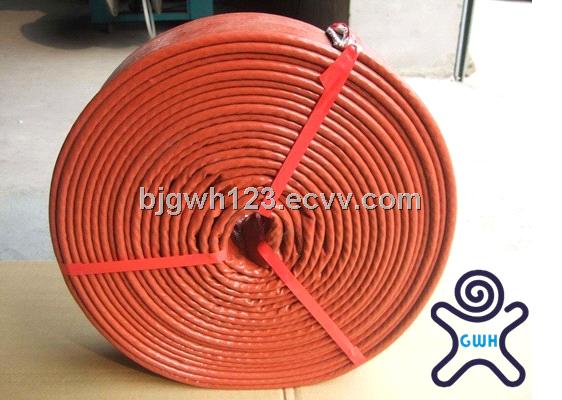

silicone coated fiberglass sleeve

FOB Price:	2.50 - 50.00 USD/Meter
Supply Ability:	2,000 Meter per Day
Shipping:	7-10 days after payment
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	export carton/ pallet

Specifications

good quality fire sleeve, firesleeves, high temperature sleeve, fire resistant sleeve, silicone resin coate fiberglass sleeve, silicone resin coated sleeves

1, Product feature:

The carbon fiber high temperature insulated fire sleeving is braided with non alkali glass fiber and carbon fiber, and coated with silicon resin in high temperature.

2, Product reaction:

Theraml protection;

Insulated fireproof;

resistance to voltage;

heat insulation;

anticorrosion and flexibility

3, Application:

Main application to the steel smelting, non-ferrous metal smelting, power plant, shipyard etc the high temperature areas that need to be protective of cable, hose and pipes.

4, Basic Performance:

A. Heat resistance: continuous working temperature of 560 °C , and will withstand a moltern splash at 1650 °C

destructive test can last for half an hour, then outside layer began to carbonization; glassfiber will be in good condition.

B. Flame retardant: VW-1

5, Color: Red colr, other colors can be customized under requirements.

Technic information:

Inside dia.(mm)	Inside dia.(inch)	wall thickness.(mm)	Tolerance (mm)	roll length(m)	ctn size(cm)	No./ctn(m)
Inside dia.(mm)	Inside dia.(inch)	wall thickness.(mm)	Tolerance (mm)	roll length(m)	ctn size(cm)	No./ctn(m)
Φ15	3/5	2	±0.20	25	474710	50
Φ20	4/5	2	±0.30	25	474710	50
Φ25	1	2	±0.40	25	474710	50
Φ30	1 1/5	2	±0.40	25	474710	50
Φ35	1 3/8	3	±0.50	25	474715	50
Φ40	1 3/5	3	±0.50	25	474715	50
Φ45	1 4/5	3	±0.80	25	474715	50
Φ50	2	3	±0.80	25	525220	50
Φ55	2 1/5	3.5	±1.00	20	525220	40
Φ60	2 3/8	3.5	±1.5	20	525220	20
Φ65	2 3/5	3.5	±1.5	20	525220	20
Φ70	2 3/4	3.5	±1.5	20	525220	20
Φ75	3	4	±1.5	15	525220	15
Φ80	3 1/5	4	±2	15	525220	15
Φ85	3 3/8	4	±2	15	525220	15
Φ90	3 1/2	4	±2	10	525220	10
Φ95	3 3/4	4	±2	10	525220	10
Φ100	4	4	±2	10	525220	10

Free samples can be available.
