Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Ahmedabad in India
Packaging Details:	Wooden Crate

Specifications

About Production :

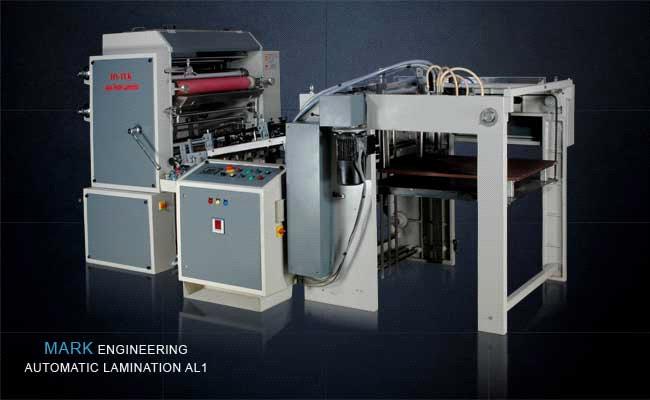

Automatic Lamination AL 1 is collaborative endeavour between Mark Engineering (renowned for AutoFeeders/Stackers) and Hy-Tek Print Mac (specializes in Aqueous / Thermal Laminators). AL 1 is integrated with best quality automation and electronics components with ergonomic touch screen for ease of operation, precise underlap control and most reliable machine performance. Super finished chrome plate roller ensures best quality results in Thermal, Aqueous or Dual lamination. Optional pre-loading device enhances production 4 times compared to manual feeding. Every detail from design to after sales service is meticulously attended to make the AL 1 run trouble free for many years. AL 1 is virtually maintenance free.

Application:

Fully Automatic Lamination for Aqueous/ Thermal /Dual lamination
Other Automatic Feeders: Automatic feeder for creasing, perforating, roller coater, board pasting, folding etc

Salient Features:

• Heavy duty frame structure

• Proven high speed stream feeding technology

• Attachable with lamination machine by all manufacturer (with Hy-Tek Print Mac, Bangalore for India)

• Double sheet detection

• Heavy duty pile lift system

• Ergonomically designed touch screen or HMI for easy machine operation
• High end PLC and Servo motor controlled drive system for precise underlap control

• Optional pre-loader for reduced lead time

• Hardened and profile ground gear train to facilitate precise paper feed and to diminish noise decibel level

• Speed up to 12,000 SPH

• Dual advantage of thermal & aqueous lamination

• Duplex unwind shafts, micro adjustable laterally, with “film trim slitter” & “perforating mechanism”

• 10” Dia.super polished, laminating chromed roller

• PID type temperature control unit with digital temp. display
• Rewind station with heavy duty clutch for take-up of aqueous & low gsm substrate.

• Supplementary adhesive tank (Approx) 25 kg

• Sheet counter with digital read-out

• Carbon steel helical gear train, duly toughened and profile ground to deminish decibel level.

TECHNICAL DATA (mm)	MARK AL 1 10271	MARK AL 1 9161
Maximum Sheet size	1020 mm (L )x 710 mm (W)	910 mm (L) x 610 mm (W)
Minimum Sheet Size	400 mm x 400 mm	400 mm x 400 mm
Stock Range	0.05 mm To 0.5 mm	0.05 mm To 0.5 mm
Feeder Pile Height	950 mm	950 mm
Feeding Height in Feeder from Floor	1065 mm	1065 mm
Laminating speed* Aqueous	0 - 65 m/min	0 - 65 m/min
Laminating speed* Thermal	0 - 25 m/min	0 - 25 m/min
Feeder drive motor A.C servo	1 kW	1 kW
Drive pile motor with break	1 HP	1 HP
Feeder Pile Motor A.C	1 HP	1 HP
Pump Motor For Feeder (not included with the machine)	3 HP	3 HP
Lamination drive motor A.C variable	2 HP	2 HP
Heater for thermal lamination	3 kW	3 kW
Floor Space Without Preloader	1800 (W) x 3300 (L) x 2400 (H)	1700 (W) x 3100 (L) x 2400 (H)
