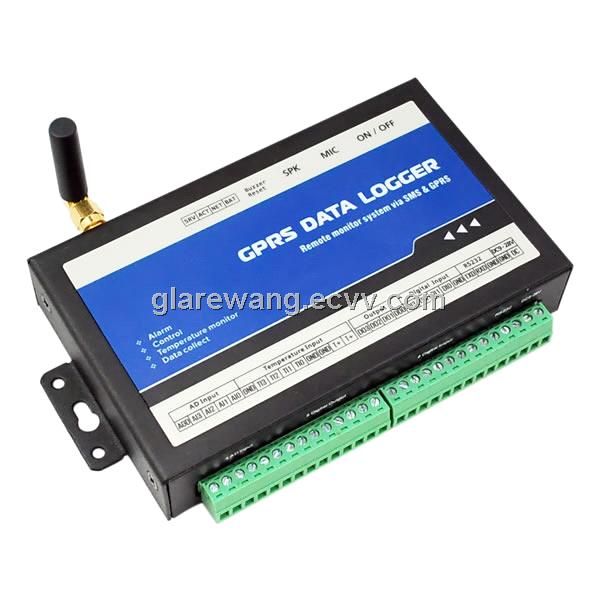

CWT5016 GPRS Temperature Date Logger

FOB Price:	100.00 - 200.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	3 days after payment
Payment Terms:	T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Temperature Instrument

Price:

Min. Order:
IC High Temperature Dynamic Burn-In System

Price:

Min. Order:
Hart Protocol / Analoy-Type Integration Intelli...

Price:

Min. Order:1 Piece
Thermocouple Model WRNT-01

Price:

Min. Order:500 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1 unit per box

Specifications

The GPRS Temperature Logger CWT5016 is very suitable for Heating Room, Cooling Room, Refrigerator Car, Food Storehouses, Weather Station, Greenhouse, Energy saving control of heating enterprises, agriculture, meteorology and other places or applications relevant to temperature measurement monitoring needs.

The GPRS Temperature Logger CWT5016 is easily to setup by simple SMS Commands.

Its internal 256KB memory logs more than 1000 records. Flexible data logging interval starts from 1 minute up to 24 hours.

4DI + 4DO + 4A I+ 4 DS18B20 temperature sensor inputs + GPRS transmission + sms alarm

Feature

Advance features

·Adopted highly integrated industrial CPU

·Reliable performance with built-in double watchdog

·Low maintenance, 24×7 operation

·Internal battery and providing power cut off alarm

·Automatically update internal clock via sms

·Supports simultaneous SMS and GPRS transmission

·Preset 10 phone numbers (can be distributed authority)

·Time stamped in alarm/recover sms or data packets

·Its internal 256KB memory logs more than 1000 records

·Flexible data logging interval (1 minute up to 24 hours)

4 digital inputs feature

·Upload status to server when inputs are triggered

·Upload inputs status to server on schedule

·Remote query inputs status by GPRS or SMS

·Support SMS alarm

·Configurable for alarm and recover sms

4 analog inputs feature

·Can preset normal range for AD input, upload data to server when above the normal range.

·Current values can be query by server or sms

·Configurable for alarm and recover SMS

·Support offset and gain

4 temperature inputs feature

·DS18B20 special input, 4 channels

·Temperature rang: -55°C ~ +125°C

·Preset high and low level to alarm

·Current temperature can be query by server via GPRS or sms

·Upload temperature on schedule

4 relay drivable outputs

·Remote On/Off/Pulse output via GPRS or SMS

·Remote query output status by GPRS or SMS

·Can be activated by alarm

·Can be activated by call

·Can be activated on schedule?

GPRS feature

·Support connects 4 servers, the servers must connect internet and have static public IP address or Dynamic Domain name

·GPRS Transmission base on TCP/IP

·Support modbus TCP protocol or CWT_IO protocol

Specifications

Parameter
DC Power supply	9-28V DC (Standard adapter: DC 12V/1.5A)
Power consumption	12V input Max. 150mA/Average 50mA
Frequency range	Dual-frequency 900/1800/850/1900Mhz
SIM Card	Supporting 3V SIM Card
Antenna	50 Ω SMA Antenna interface
Serial	RS232
Temperature range	-30°C ~ +70 °C
Humidity range	Relative humidity 95%
Digital Input	4 digital inputs(Dry contact)
output	4 drivable relay outputs(open-collector outputs)
Output drive voltage	Equal to input DC voltage
Output drive power	Drive voltage ≤35V, drive current ≤500mA
Analog Input	4 analog inputs(4~20mA or 0~5V)
Temperature input	4 DS18B20 inputs (temperature range -55°C ~ +125 °C )
memory	256K
Audio interface	3.5mm audio in and audio out
Exterior dimension	130×80×25mm
Weight	370 g

How Does the GPRS Temperature Logger CWT5016 works?

The GPRS Temperature Logger CWT5016 equipped one reliable GPRS Module inside, and plus one sensitive temperature sensor, the sensor has a predictable resistance that is affected by temperature change, so as the temperature increases or decreases the electrical current changes, or the resistance increases and decreases. Then transmits the electrical signal to MCU, and the MCU will process the signal and then transmits to Monitoring Center Domain or Sever by GPRS.

Once the Monitoring Center Received the data, will identify the data and distinguish where is from, then store it and display them as line chart as well as show the place by map for user review. More about the Web Based monitoring center please see GPRS Temperature Logger Web Based Monitoring Center Datasheet.

Standard Package list of the GPRS Temperature Logger CWT5016:

Mainframe X1

Semiconductor Temperature Sensor X1

AC/DC AdaptorX1

GSM Antenna X1

User Manual CD X1
