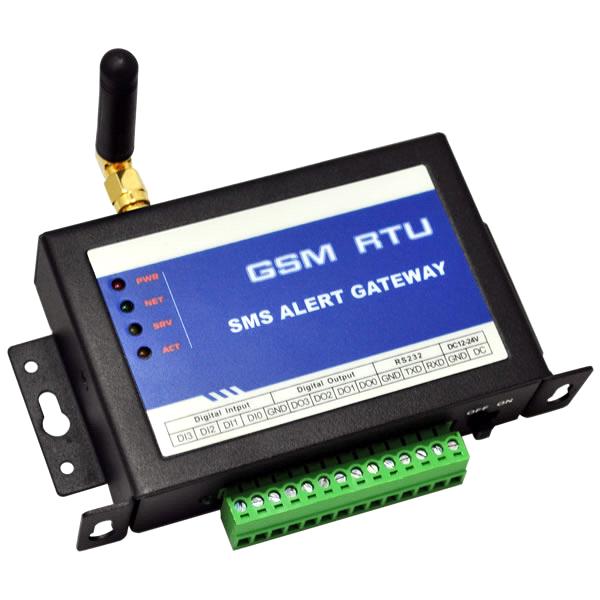

GPRS Telemetry CWT5110 with pulse counter

Specifications

GPRS Telemetry CWT5110 with pulse counter

• A Switch with SMS Remote Control. SMS texts for switching particular terminals on/off are configurable.
• A Timer-Switch which can be activated automatically. It can be used as preset time when the GSM GPRS Remote Controller need work and when it needn‘t work. 4 daily timer and 7 Weekly Timers.
• A Relay with dialling-in remote control. Up to 4 tel. numbers can be authorized for it. Because calls are not answered dialling-in control within GSM is free of charge. (it only checks the caller’s number and - if the number is authorized - responds with relay activation.) This can be used for parking latch control, gsm gate opener, remote control machine, etc.
• An automation system. Each input can link to output actions, this is very useful when the temperature upto appointed value, need switch on the air-conditioning immediately, or when water overflow and need switch on the dryer, or when somebody broken into the door or windows need to start the CCTV and Siren.
• A SMS reporter. The digital Inputs activations or deactivations can be reported by SMS and optionally confirmed by phone calls. Each input can have its own message texts and the message can be programmed by users.
• A Pulse Counter. The digital inputs can be used as the pulse counter, the user can setup both of interval value activated alarm and total value activated alarm.
• A Data Logger. The unit can save the all of the acquisition data in internal memory storage and upload to internet by GPRS network according to schedue, no distance limitation.
• A Wireless Data Acquisition to SCADA or HMI or Monitoring Center. The unit can acquisition the varity data(E.g.: Pressure, Level, Current, Voltage, digital input status, pulse counter, digital relay output status, temperature value, humidity value and other) and upload to the SCADA(Real time dynamic data) or HMI or Mornitoring Center by SMS or GPRS, no distance limitation.
• A Wireless Intelligent Meter Reader. The GSM GPRS Remote Controller can be used to read remotely intelligent meter data to SCADA or monitoring center by RS232 port or RS485 Port, at present supports ABB,KL,HHE intelligent meters by RS485, more special meters’ communication protocol can be add according to application requirements.
• A GSM GPRS Remote Termials (GSM GPRS Remote Controller). It can work with the supervisioning center, in the supervisioning center, the own can remote monitoring and control the remotely terminals by GSM GPRS Network.This is very useful to Fuel tank monitoring, Oxygen in hospital, Flood level, street light control, wellhead control, BTS environment monitoring, power transmission system monitoring and other applications.
