Specifications
| Model | BR-500 | BR-1200 |
| Workroom dimensions (cm) | 80*80*80 | 102*120*100 |
| Exterior dimensions (cm) | 102*136*156 | 128*172*182 |
| Power | 2.0(KW) | 2.5(KW) |
| Water spray ring radius | 375 mm | 500 mm |
| Water pipe diameter | φ16mm | |
| Spraying hole diameter | φ0.4mm | |
| Aperture spacing | 50 mm | |
| Swing range | ±45°, ±60°, ±90°, ±180° | |
| Test bench rotation speed | 1r/min, or steeples speed regulating (optional) | |
| Swing speed | adjustable | |
| Raining pressure | 80KPa, adjustable. (Meet 5±2 mm/min of rain density, according to standard calculation) | |
| Rotate speed of holder | 1~3r/min, adjustable. (changeable following special requirement). Can make an angle of 45° | |
| Area of holder | Ø600mm | |
| Power supply | AC 380V±10%;50 Hz | |
| Ambient temperature & humidity | +5~32ºC ≤85%RH | |
| Remark: The water for raining should be filtered soft water or purified water, to prevent the raining holes from blocked. | ||

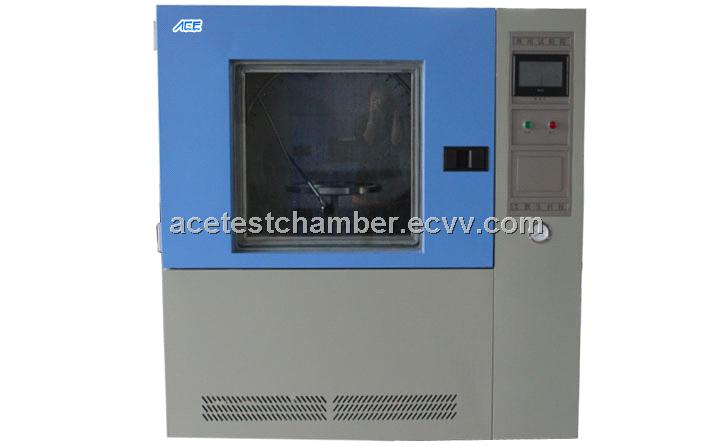

Box Rain from this supplier
