Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

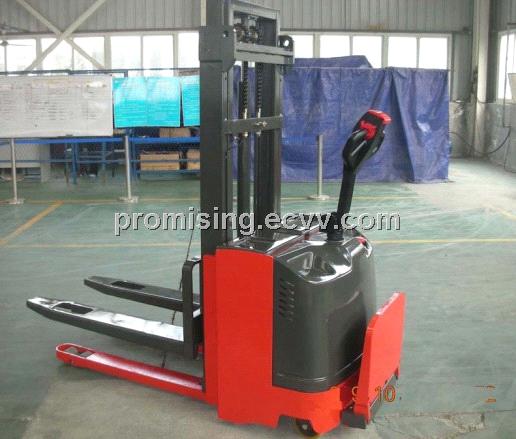

TB20-45 Electric Pallet Stacker
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TB20-45
- Lift Drive / Actuation: Hand
- Rated Load Capacity (KG): 2000
- Max. Lifting Height (MM)-H3: 4500
- Overall Length : 2040
- Overall Width (MM) -b1: 850
- Height (MM)-Mast Extended--H4: 5051
Specifications
|
Description
Model No. |
TB20-45
|
|
Rated Load Capacity (KG)
|
2000
|
|
Load Capacity At Max. Height --KG
|
750
|
|
Max. Lifting Height (MM)-H3
|
4500
|
|
Load center MM -C
|
500
|
|
Overall Length without pedal (MM)--L1
|
2040
|
|
Overall Width (MM) -b1
|
850
|
|
Wheelbase (MM) --L3
|
1427
|
|
Height (MM)-Mast Lowered--H1
|
2820
|
|
Free Lift Height (MM) --H2
|
0
|
|
Height (MM)-Mast Extended--H4
|
5051
|
|
Height (MM)-Fork Face --H5
|
90
|
|
Height (MM)-Pedal -H6
|
137
|
|
Height (MM)-Handle-H7
|
1470/970
|
|
Front Overhang (MM)--L2
|
338
|
|
Fork Size L×W (MM)
|
1150*190
|
|
Outside Width--Fork(MM)--b3
|
680
|
|
Min. Turning Radius(MM)--Wa
|
1725
|
|
Front Tread (MM)--b2
|
490
|
|
90°Stacking Aisle(MM) (1000*1000 Pallet)--Ast
|
2460
|
|
Grade Ability %
|
8
|
|
Travel Speed km/h-Laden/unladen
|
4.0/5.8
|
|
Driving Wheel (MM)
|
Φ215*75
|
|
Balance Wheel (MM)
|
Φ150*50
|
|
Front Wheel (MM)
|
Φ80*70
|
|
Battery V/AH-Domestic Brand
|
24/210
|
|
Charger V/A
|
24/30
|
|
Driving Motor (KW)
|
1.5
|
|
Lifting Motor (KW)
|
2.0
|
|
Service Weight (with battery)?KG
|
1112
|
