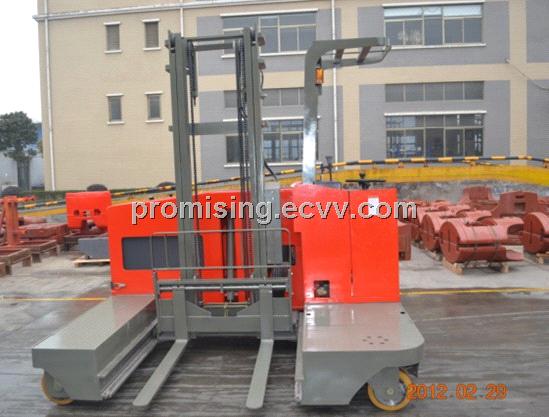

TD20-50 Side Loading Forklift Truck

FOB Price:	10,000.00 - 20,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Shipping:	30 days upon payment
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Nude

Quick Details

Condition: New
Brand Name: Dragon Machinery
Model Number: TD20-50
Type: Manual Pallet Truck
Power Souce: AC Motor
Rated Loading Capacity: 2000
Max. Lifting Height: 5000
Min. Lifting Height: 2572
Fork Length: 920
Fork Width: 100
Overall Dimensions: 45
Certification: CE
After-sales Service Provided: Overseas service center available
Rated Capacity (KG): 2000
Operate Type: Stand-on
Max. Lifting Height (MM): 5000
Overall Length (MM): 2580
Overall Width (MM): 2000
Height---Mast Lowered (MM): 2330

Specifications

TD Series side loading forklift truck, rated load capacity: 2000kg, lift height: 5000 mm, used for long material transportation;
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintain the battery;
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
7. Buffering design for lift cylinder, to improve the function of mast in lifting and downing, to ensure the safe for products;
8. Electromagnetism braking with Lose-electric type have reliable braking result, it's can easy to make the parking brake safely;
9. Battery with side-pulling function, easy to change and maintenance.

Description Model No.	TD20-50
Rated Capacity (KG)	2000
Operate Type	Stand-on
Max. Lifting Height (MM)	5000
Min. Turning Radius (MM)	2572
Min. Stacking Aisle-- mm (1000*1000 Pallet)	2772
Max Travel Speed km/h -laden/unladen	6.0/7.0
Load center MM	500
Fork Dimensions -L/W/T---mm	92010045
Lifting Speed (MM/S)-laden/unladen	120/270
Overall Length (MM)	2580
Overall Width (MM)	2000
Height-Overhead guard--mm	2330
Height---Mast Lowered (MM)	2351
Height-Mast Extended w/ Load-Backrest -mm	5875
Height--Free Lift --mm	100
Outrigger Height ---mm	415
Tilt Angle---- Upward/Downward--deg.	3/5
Fork Spread Range (MM)	247-1072
Reach Stroke	1065
Min Ground Clearance--mm	88
Wheel Type	Polyurethane Solid Tyre
Driving Wheel (MM)	Φ343×120
Balance Wheel (MM)	Φ204×80
Front Wheel (MM)	Φ267×114
Swivel Caster Wheel---mm	Φ267×76
Battery V/AH-Domestic BRAND	48V/400 AH
Service Brake	Electromagnetic
Parking Brake	Electromagnetic
Charger-Intelligent	48 V/50 A
Driving Motor (KW)	5.5(AC)
Lifting Motor (KW)	7.5
