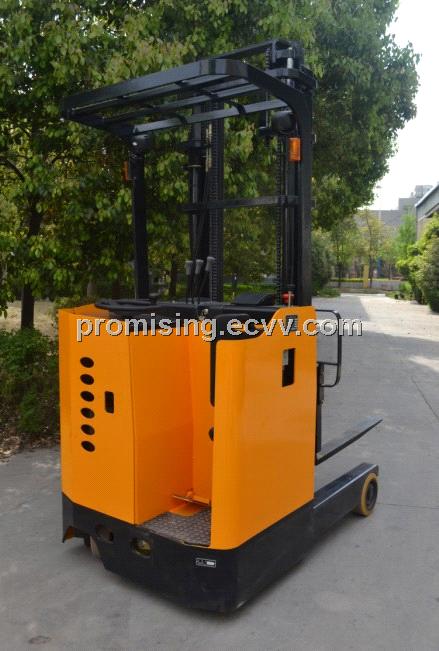

TF15-40 48V Electric Reach Truck
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TF15-40
- Lift Drive / Actuation: Hand
- Rated Capacity (KG): 1500
- Operate Type: Stand-on
- Max. Lifting Height (MM): 4000
- Fork Dimensions-L/W/T---mm: 1070*100*35
- Overall Length (MM): 2266
- Overall Width (MM): 1098
Specifications
48V Electric Reach Truck
TF Series with AC driving motor, Rated load capacity: 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve, to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
6. With Imported AC motor without Carbon brush, dustproof, damp proofing, long working life, lower use-cost, controlled voltage/frequency;
7. To use water-proof and dust-proof design for all circuit, to avoid the short circuiting happened;
8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;
9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;
10. High Strength overhead guard to protect the operator.
TF Series with AC driving motor, Rated load capacity: 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve, to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
6. With Imported AC motor without Carbon brush, dustproof, damp proofing, long working life, lower use-cost, controlled voltage/frequency;
7. To use water-proof and dust-proof design for all circuit, to avoid the short circuiting happened;
8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;
9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;
10. High Strength overhead guard to protect the operator.
|
Description
Model No. |
TF15-40
|
|
Rated Capacity (KG)
|
1500
|
|
Operate Type
|
Stand-on
|
|
Max. Lifting Height (MM)
|
4000
|
|
Min. Turning Radius (MM)
|
1625
|
|
Min. Stacking Aisle---mm (1000*1000 Pallet)
|
2622
|
|
Max Travel Speed km/h-laden/unladen
|
7.5/8.5
|
|
Load center MM
|
500
|
|
Fork Dimensions-L/W/T---mm
|
1070*100*35
|
|
Max. Grade ability ---%
|
10
|
|
Lifting Speed (MM/S)-laden/unladen
|
117/243
|
|
Overall Length (MM)
|
2266
|
|
Overall Width (MM)
|
1098
|
|
Height-Overhead guard--mm
|
2320
|
|
Height---Mast Lowered(MM)
|
2580
|
|
Height-Mast Extended w/ Load-Backrest -mm
|
4885
|
|
Height--Free Lift --mm
|
100
|
|
Tilt Angle----Upward/Downward--deg.
|
3/5
|
|
Fork Spread Range (MM)
|
220-662
|
|
Reach Stroke
|
560
|
|
Min Ground Clearance--mm
|
80
|
|
Wheel Type
|
Polyurethane Solid Tyre
|
|
Driving Wheel (MM)
|
Φ343×108
|
|
Balance Wheel (MM)
|
Φ180×76
|
|
Front Wheel (MM)
|
Φ267×114
|
|
Battery V/AH- "TONGBA"BRAND
|
48V /300 AH
|
|
Service Brake
|
MECH.
|
|
Parking Brake
|
MECH.
|
|
Charger-Intelligent
|
48V/40A
|
|
Driving Motor (KW)
|
5.5 (AC)
|
|
Lifting Motor (KW)
|
6.3
|
