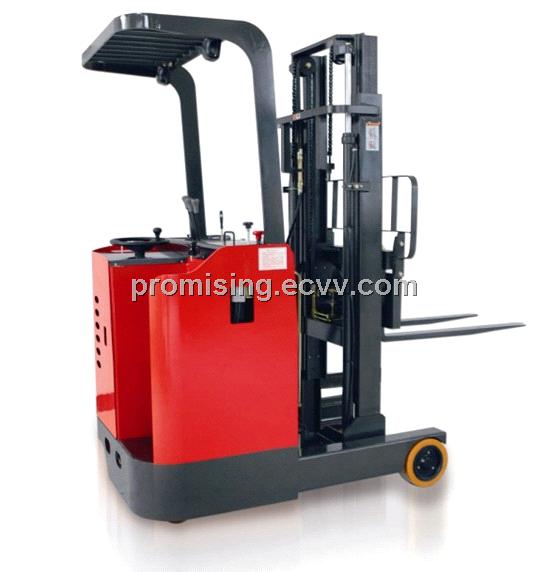

TF20-72 Electric Reach Truck
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TF20-72
- Lift Drive / Actuation: Hand
- Rated Capacity (KG): 2000
- Operate Type: Stand-on
- Max. Lifting Height (MM): 7200
- Min. Turning Radius (MM): 1965
- Fork Dimensions-L/W/T---mm: 1070*100*45
- Overall Length (MM): 2468
- Overall Width (MM): 1258
- Height---Mast Lowered(MM): 2084
Specifications
|
Description
Model No. |
TF20-72
|
||
|
Rated Capacity (KG)
|
2000
|
||
|
Operate Type
|
Stand-on
|
||
|
Max. Lifting Height (MM)
|
7200
|
||
|
Min. Turning Radius (MM)
|
1965
|
||
|
Min. Stacking Aisle---mm (1000*1000 Pallet)
|
2895
|
||
|
Max Travel Speed km/h-laden/unladen
|
7.0/8.0
|
||
|
Load center MM
|
500
|
||
|
Fork Dimensions-L/W/T---mm---8.
|
1070*100*45
|
||
|
Max. Grade ability ---%
|
10
|
||
|
Lifting Speed (MM/S)-laden/unladen
|
110/243
|
||
|
Overall Length (MM)
|
2468
|
||
|
Overall Width (MM)
|
1258
|
||
|
Height-Overhead guard--mm
|
2320
|
||
|
Height---Mast Lowered(MM)
|
2084
|
||
|
Height-Mast Extended w/ Load-Backrest -mm
|
8075
|
||
|
Height--Free Lift --mm
|
2600
|
||
|
Tilt Angle----Upward/Downward--deg.
|
3/5
|
||
|
Fork Spread Range (MM)
|
247-780
|
||
|
Reach Stroke
|
685
|
||
|
Min Ground Clearance--mm
|
80
|
||
|
Wheel Type
|
Polyurethane Solid Tyre
|
||
|
Driving Wheel (MM)
|
Φ 343× 108
|
||
|
Balance Wheel (MM)
|
Φ 180× 76
|
||
|
Front Wheel (MM)
|
Φ 267× 114
|
||
|
Battery V/AH- " TONGBA" BRAND
|
48V/400 AH
|
||
|
Service Brake
|
MECH.
|
||
|
Parking Brake
|
MECH.
|
||
|
Charger-Intelligent
|
48V/50A
|
||
|
Driving Motor (KW)
|
5.5 (AC)
|
||
|
Lifting Motor (KW)
|
6.3
|
7.5
|
7.5
|
