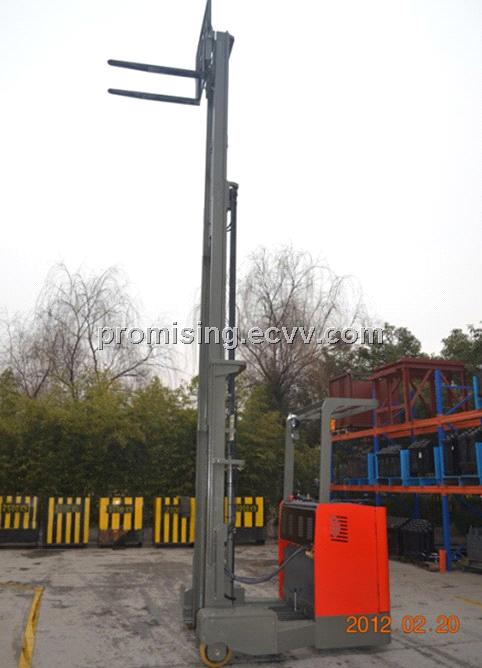

TFB20-60 4-Direction Reach Truck
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TFB20-60
- Lift Drive / Actuation: Hand
- Rated Capacity (KG): 2000
- Max. Lifting Height (MM): 6000
- Load center MM: 500
- Fork Dimensions- L/W/T---mm: 1070*100*35
- Overall Length (MM): 2393
- Overall Width (MM): 1682
Specifications
Description of TFB20-60 4-Direction Reach Truck:
AC Driving system, hydraulic steering;
Maximised Storage Capacities
Reduced handling times
Reduced costs
Less damage to product or property
TFB 4-direction reach truck with 4 direction changing and moving;
Rated load capacity: 2000kg;
Max lift height: 6000mm.
The user-friendly display allows you to tare off containers up to 100% of the scale range or you can input the known tare weight of a loaded.
Made stronger than the original truck.
All our weighing machines are made using high quality load cells that have a very good repeatability.
Maximised Storage Capacities
Reduced handling times
Reduced costs
Less damage to product or property
TFB 4-direction reach truck with 4 direction changing and moving;
Rated load capacity: 2000kg;
Max lift height: 6000mm.
The user-friendly display allows you to tare off containers up to 100% of the scale range or you can input the known tare weight of a loaded.
Made stronger than the original truck.
All our weighing machines are made using high quality load cells that have a very good repeatability.
|
Description
Model No. |
TFB20-60
|
|
Rated Capacity (KG)
|
2000
|
|
Operate Type
|
Stand-on
|
|
Max. Lifting Height (MM)
|
6000
|
|
Max Travel Speed km/h-laden/unladen
|
7.5/8.5
|
|
Load center MM
|
500
|
|
Fork Dimensions- L/W/T---mm
|
1070*100*35
|
|
Lifting Speed (MM/S)-laden/unladen
|
117/243
|
|
Side-travel Speed -km/h
|
5
|
|
Overall Length (MM)
|
2393
|
|
Overall Width (MM)
|
1682
|
|
Height-Overhead guard--mm
|
2320
|
|
Height---Mast Lowered(MM)
|
2622
|
|
Height-Mast Extended w/Load-Backrest -mm
|
6875
|
|
Height--Free Lift--mm
|
2090
|
|
Tilt Angle----Upward/Downward--deg.
|
3/5
|
|
Fork Spread Range(MM)
|
247-780
|
|
Reach Stroke
|
570
|
|
Min Ground Clearance--mm
|
80
|
|
Wheel Type
|
Polyurethane Solid Tyre
|
|
Driving Wheel (MM)
|
Φ 343× 108
|
|
Balance Wheel (MM)
|
Φ 180× 76
|
|
Front Wheel (MM)
|
Φ 267× 114
|
|
Battery V/AH-
|
48V /300 AH
|
|
Service Brake
|
Electromagnetic
|
|
Parking Brake
|
Electromagnetic
|
|
Charger-Intelligent
|
48V /40 A
|
|
Driving Motor (KW)
|
5.5 (AC)
|
|
Lifting Motor (KW)
|
6.3
|
