Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

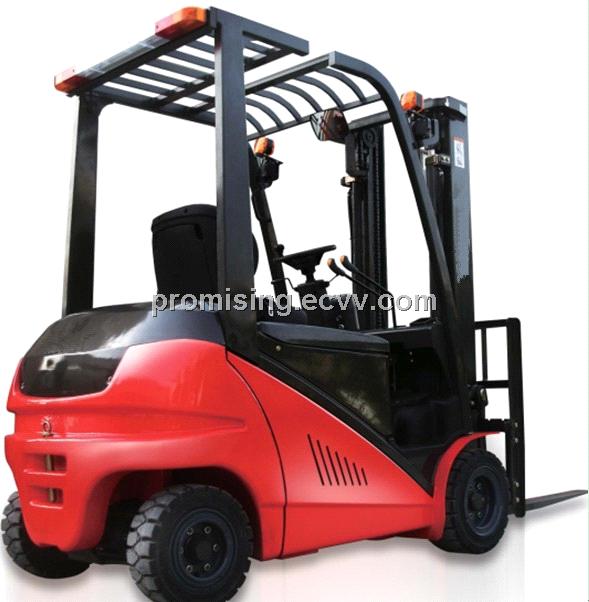

TK420-30 4-Wheel Electric Forklift Truck
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Condition: New
- Brand Name: Dragon Machienry
- Model Number: TK420-30
- Type: Manual Pallet Truck
- Power Souce: AC Motor
- Rated Loading Capacity: 2000
- Max. Lifting Height: 3000
- Fork Length: 1070
- Fork Width: 120
- Overall Dimensions: 40
- Certification: CE
- After-sales Service Provided: Overseas service center available
- Model: TK420-30
- Load capacity (Kg): 2000
- Load center (mm): 500
- Max. Lifting height (mm): 3000
- Fork size (LxWxT) (mm): 1070x120x40
- Overall length(with forks) (mm): 3250
- Overall width (mm): 1160
- Overall height (mm): 3915
Specifications
|
1
|
Description
|
AC electric forklift truck (Double driving)
|
|
2
|
Model
|
TK420-30
|
|
3
|
Load capacity (Kg)
|
2000
|
|
4
|
Load center (mm)
|
500
|
|
5
|
Max. Lifting height (mm)
|
3000
|
|
6
|
Tilting angle (forward- backward) deg
|
6/7
|
|
7
|
Service Weight kg
|
3980
|
|
8
|
Wheel type
|
Solid
|
|
9
|
wheel (x=driving wheel)
|
2x/2
|
|
10
|
Fork size (LxWxT) (mm)
|
1070x120x40
|
|
11
|
Fork spread (mm)
|
920
|
|
12
|
Overall length(with forks) (mm)
|
3250
|
|
13
|
Overall width (mm)
|
1160
|
|
14
|
Overall height mast closed (mm)
|
2122
|
|
15
|
Overall height fork raised(with backrest) (mm)
|
3915
|
|
16
|
Overhead guard height (mm)
|
2050
|
|
17
|
Turning radius (mm)
|
1960
|
|
18
|
Max. Walking speeds (Km/h)
|
14
|
|
19
|
Grade ability %
|
15
|
|
20
|
Front tire
|
200/50-10
|
|
21
|
Rear tire
|
16x6-8
|
|
22
|
Ground clearance (mm)
|
95
|
|
23
|
Service brake
|
hydraulic
|
|
24
|
Parking brake
|
mechanical
|
|
25
|
Battery V/Ah
|
48/600
|
|
26
|
Charger V/A
|
48/70
|
|
27
|
Driving motor (Kw)
|
4.5*2
|
|
28
|
Lifting motor (Kw)
|
8.6
|
|
29
|
Control system
|
MOSFET
|
