Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

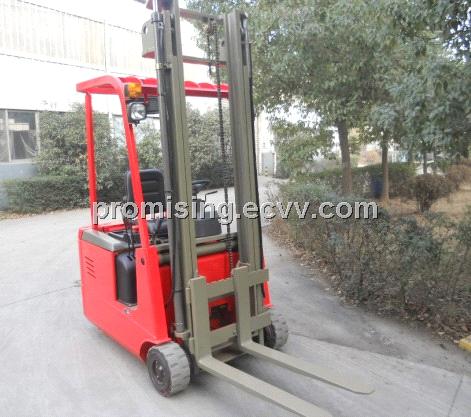

TKA10-35 3-Wheel Electric Forklift Truck
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TKA10-35
- Lift Drive / Actuation: Hand
- Rated Capacity (KG): 1000
- Max. Lifting Height (MM): 3500
- Min. Turning Radius (MM): 1170
- Load center MM: 500
- Fork Dimensions-L/W/T---mm: 920*100*35
- Overall Length (MM): 2265
- Overall Width (MM): 915
- Height---Mast Lowered (MM): 2315
Specifications
|
Description Model No.
|
TKA10-35
|
|
Rated Capacity (KG)
|
1000
|
|
Operator Type
|
Seated
|
|
Max. Lifting Height (MM)
|
3500
|
|
Min. Turning Radius (MM)
|
1170
|
|
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST
|
2870
|
|
Max Travel Speed km/h-laden/unladen
|
6.5/7.5
|
|
Load center MM
|
500
|
|
Fork Dimensions-L/W/T---mm
|
920*100*35
|
|
Max. Grade ability ---%--Laden/unladen
|
8/10
|
|
Lifting Speed (MM/S)-laden/unladen
|
125/170
|
|
Overall Length (MM)
|
2265
|
|
Length-to Fork Face
|
1345
|
|
Overall Width (MM)
|
915
|
|
Height-Overhead guard--mm
|
1965
|
|
Height---Mast Lowered (MM)
|
2315
|
|
Height-Mast Extended w/ Load-Backrest -mm
|
4045
|
|
Height--Free Lift --mm
|
0
|
|
Height--seat to overhead guard ---mm
|
1000
|
|
Tilt Angle----Forward/Backward--deg.
|
2/4
|
|
Fork Spread Range (MM)
|
220-548
|
|
Front Overhang ----mm
|
175
|
|
Wheelbase ----mm
|
880-961
|
|
Tread ----mm --front/rear
|
747
|
|
Min Ground Clearance--mm
|
90
|
|
Front Tyre -- (MM)
|
305× 127
|
|
Rear Tyre -- (MM)
|
267× 127
|
|
Service Brake
|
Hydraulic
|
|
Parking Brake
|
Hand
|
|
Battery V/AH
|
24V /360 AH
|
|
Battery-Weight ---kg
|
295
|
|
Charger-Intelligent
|
24V /40 A
|
|
Driving Motor (KW)
|
2.8
|
|
Steering Motor (KW)
|
0.75
|
|
Lifting Motor (KW)
|
3.5
|
|
Service Weight ---kg --incl. Battery
|
1950
|
